LM2830

VIN ...................-0.5V to 7V
FB Voltage............... -0.5V to 3V
EN Voltage............... -0.5V to 7V
SW Voltage...... ...... .. -0.5V to 7V
ESD Susceptibility............. .. 2kV
Junction Temperature (Note 2) ... . ..150°C
Storage Temperature..... −65°C to +150°C
Soldering Information
Infrared or Convection Reflow
(15 sec)............... ... 220°C
Operating Ratings
VIN ...................3V to 5.5V
Junction Temperature .....−40°C to +125°C

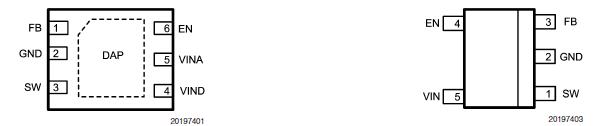

The LM2830 regulator is a monolithic, high frequency, PWM step-down DC/DC converter in a 5 pin SOT23 and a 6 Pin LLP package. It provides all the active functions to provide local DC/DC conversion with fast transient response and accurate regulation in the smallest possible PCB area. With a minimum of external components, the LM2830 is easy to use. The ability to drive 1.0A loads with an internal 130 m PMOS switch using state-of-the-art 0.5 m BiCMOS technology results in the best power density available. The worldclass control circuitry allows on-times as low as 30ns, thus supporting exceptionally high frequency conversion over the entire 3V to 5.5V input operating range down to the minimum output voltage of 0.6V. Switching frequency is internally set to 1.6 MHz, or 3.0 MHz, allowing the use of extremely small surface mount inductors and chip capacitors. Even though the operating frequency is high, efficiencies up to 93% are easy to achieve. External shutdown is included, featuring an ultra-low stand-by current of 30 nA. The LM2830 utilizes current-mode control and internal compensation to provide high-performance regulation over a wide range of operating conditions. Additional features include internal soft-start circuitry to reduce inrush current, pulse-by-pulse current limit, thermal shutdown, and output over-voltage protection.
