Position: Home  > All Categories> Integrated Circuits (ICs) > LM3402HV

LM3402HV

Features: · Integrated 0.5A N-channel MOSFET· VIN Range from 6V to 42V (LM3402)· VIN Range from 6V to 75V (LM3402HV)· 500 mA Output Current Over Temperature· Cycle-by-Cycle Current Limit· No Control Loop Compensation Required· Separate PWM Dimming and Low Power Shutdown· Supports all-ceramic outpu...

product image

LM3402HV Picture
See larger image
SeekIC No. : 004395297 Detail

LM3402HV: Features: · Integrated 0.5A N-channel MOSFET· VIN Range from 6V to 42V (LM3402)· VIN Range from 6V to 75V (LM3402HV)· 500 mA Output Current Over Temperature· Cycle-by-Cycle Current Limit· No Control...

LM3402HV Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LM3402HV
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Integrated 0.5A N-channel MOSFET
· VIN Range from 6V to 42V (LM3402)
· VIN Range from 6V to 75V (LM3402HV)
· 500 mA Output Current Over Temperature
· Cycle-by-Cycle Current Limit
· No Control Loop Compensation Required
· Separate PWM Dimming and Low Power Shutdown
· Supports all-ceramic output capacitors and capacitor-less outputs
· Thermal shutdown protection
· MSOP-8, PSOP-8 Packages

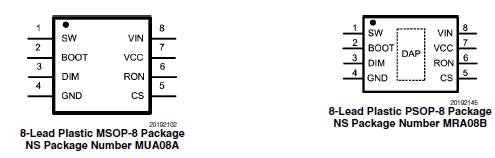

Pinout

Connection Diagram


Specifications

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.


VIN to GND                             -0.3V to 45V
BOOT to GND                          -0.3V to 59V
SW to GND                             -1.5V
BOOT to VCC                          -0.3V to 45V
BOOT to SW                           -0.3V to 14V
VCC to GND                            -0.3V to 14V
DIM to GND                             -0.3V to 7V
CS to GND                              -0.3V to 7V
RON to GND                            -0.3V to 7V
Junction Temperature             150°C
Storage Temp. Range            -65°C to 125°C
ESD Rating (Note 2)                2kV
Soldering Information
Lead Temperature (Soldering, 10sec) 260°C
Infrared/Convection Reflow (15sec) 235°C


Description

The LM3402HV are monolithic switching regulators designed to deliver constant currents to high power LEDs. Ideal for automotive, industrial, and general lighting applications, they contain a high-side N-channel MOSFET switch with a current limit of 735 mA (typical) for step-down (Buck) regulators. Hysteretic control with controlled on-time coupled with an external resistor allow the converter output voltage to adjust as needed to deliver a constant current to series and series - parallel connected arrays of LEDs of varying number and type, LED dimming by pulse width modulation (PWM), broken/open LED protection, low-power shutdown and thermal shutdown complete the feature set.
