LM6511

Supply Voltage............ −0.3 to +36V
Output to Negative Supply Voltage....... 50V
Ground to Negative Supply Voltage .......30V
Differential Input Voltage.......... ±30V
Input Voltage (Note 2)
Storage Temperature Range ..−65°C to +150°C
Soldering Information:
SO Package
(Vapor Phase in 60 sec)...........215°C
SO Package (Infrared in 15 sec).......220°C
Power Dissipation ............500 mW
Output Short Circuit Duration 10s
Junction Temperature 1...........50°C
ESD Rating
(C = +100 pF, R = 1.5 kW) ..........300V

The LM6511 voltage comparator is ideal for analog-digital interface circuitry when only a +3V or +3.3V supply is available. The open-collector output permits signal compatibility with a wide variety of digital families: +5V CMOS, +3V CMOS,

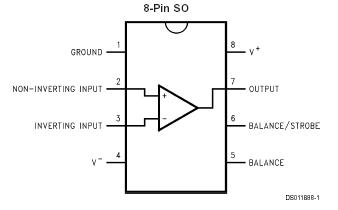

TTL and so on. Supply voltage may range from 2.7V to 36V between supply voltage leads. The LM6511 operates with little power consumption (Pdiss < 9.45 mW at V+ = +2.7V and V− = 0V). This voltage comparator offers many features that are available in traditional sub-microsecond comparators: output sync strobe, inputs and output may be isolated from system ground, and wire-ORing. Also, the LM6511 uses the industry-standard, single comparator pinout configuration.
