LMC835

Features: No volume controls requiredThree-wire interface14 bands, 25 steps each±12 dB or ±6 dB gain rangesLow noise and distortionTTL, CMOS logic compatibleApplicationHi-Fi equalizerReceiverCar stereoMusical instrument Tape equalizationMixerVolume controllerPinoutSpecificationsSupply Voltage, VDD...

product image

LMC835 Picture
See larger image
SeekIC No. : 004396566 Detail

LMC835: Features: No volume controls requiredThree-wire interface14 bands, 25 steps each±12 dB or ±6 dB gain rangesLow noise and distortionTTL, CMOS logic compatibleApplicationHi-Fi equalizerReceiverCar ste...

LMC835 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMC835
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 No volume controls required
 Three-wire interface
 14 bands, 25 steps each
 ±12 dB or ±6 dB gain ranges
 Low noise and distortion
 TTL, CMOS logic compatible


Application

 Hi-Fi equalizer
 Receiver
 Car stereo
 Musical instrument
Tape equalization
 Mixer
 Volume controller


Pinout

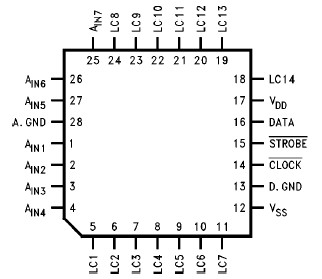

Connection Diagram


Specifications

Supply Voltage, VDD-VSS                                                   18V
Allowable Input Voltage (Note 1)                               VSS-0.3V
                                                                             to VDD+0.3V
Storage Temperature, Tstg                            -60oC to +150oC
Lead Temperature (Soldering, 10 sec), N Pkg             +260oC
Lead Temperature, V Pkg
   Vapor Phase (60 sec)                                                +215oC
   Infrared (15 sec)                                                       +220oC


Description

The LMC835 is a monolithic, digitally-controlled graphic equalizer CMOS LSI for Hi-Fi audio. The LMC835 consists of a Logic section and a Signal Path section made of analog switches and thin-film silicon-chromium resistor networks. The LMC835 is used with external resonator circuits to make a stereo equalizer with seven bands, ±12 dB or ±6 dB gain range and 25 steps each. Only three digital inputs are needed to control the equalization. The LMC835 makes it easy to build a mP-controlled equalizer.

The signal path is designed for very low noise and distortion, resulting in very high performance, compatible with PCM audio.
