LMH6628

`Wide unity gain bandwidth: 300MHz
`Low noise: 2nV/Hz
`Low Distortion: −65/−74dBc (10MHz)
`Settling time: 12ns to 0.1%
`Wide supply voltage range: ±2.5V to ±6V
`High output current: ±85mA
`Improved replacement for CLC428

·High speed dual op amp
·Low noise integrators
·Low noise active filters
·Driver/receiver for transmission systems
·High speed detectors
·I/Q channel amplifiers

The National LMH6628 is a high speed dual op amp that offers a traditional voltage feedback topology featuring unity gain stability and slew enhanced circuitry.

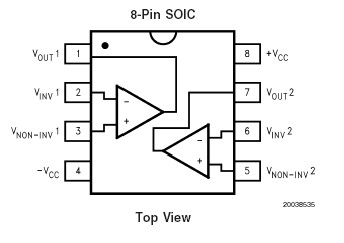

The LMH6628's low noise and very low harmonic distortion combine to form a wide dynamic range op amp that operates from a single (5V to 12V) or dual (±5V) power supply. Each of the LMH6628's closely matched channels provides a 300MHz unity gain bandwidth and low input voltage noise density (2nV/Hz ). Low 2nd/3rd harmonic distortion (−65/ −74dBc at 10MHz) make the LMH6628 a perfect wide dynamic range amplifier for matched I/Q channels. With its fast and accurate settling (12ns to 0.1%), the LMH6628 is also an excellent choice for wide dynamic range, anti-aliasing filters to buffer the inputs of hi resolution analog-to-digital converters. Combining the LMH6628's two tightly matched amplifiers in a single 8-pin SOIC package reduces cost and board space for many composite amplifier applications such as active filters, differential line drivers/ receivers, fast peak detectors and instrumentation amplifiers.

The LMH6628 is fabricated using National's VIP10™ complimentary bipolar process. To reduce design times and assist in board layout, the LMH6628 is supported by an evaluation board (CLC730036).
