LMP2232

PinoutSpecificationsOffset Voltage max, 25C0.15 mVTcVos0.3 uV/degCCMRR97 dBPSRR120 dBAvol120 dBVoltage Noise60 nV/root(Hz)Max Input Bias Current0.003 nAGain Bandwidth0.13 MHzSupply Current Per Channel0.014 mAPowerWise Rating 2107.7 uA/MHzSlew Rate0.048 Volts/usecChannels2 ChannelsSupply Min1.6 Vol...

product image

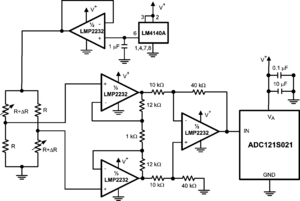

LMP2232 Picture
See larger image
SeekIC No. : 004396744 Detail

LMP2232: PinoutSpecificationsOffset Voltage max, 25C0.15 mVTcVos0.3 uV/degCCMRR97 dBPSRR120 dBAvol120 dBVoltage Noise60 nV/root(Hz)Max Input Bias Current0.003 nAGain Bandwidth0.13 MHzSupply Current Per Chann...

LMP2232 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LMP2232
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

Offset Voltage max, 25C0.15 mV
TcVos0.3 uV/degC
CMRR97 dB
PSRR120 dB
Avol120 dB
Voltage Noise60 nV/root(Hz)
Max Input Bias Current0.003 nA
Gain Bandwidth0.13 MHz
Supply Current Per Channel0.014 mA
PowerWise Rating 2107.7 uA/MHz
Slew Rate0.048 Volts/usec
Channels2 Channels
Supply Min1.6 Volt
Supply Max5.5 Volt
Input OutputTypeVcm to V-, R-R Out
Output Current22 mA
Shut downNo
Temperature Min-40 deg C
Temperature Max125 deg C
FunctionOp Amp
Automotive Selection GuideYes
PowerWiseYes
View Using Catalog



Description

The LMP2232 is a dual micropower precision amplifier designed for battery powered applications. The 1.6V to 5.5V operating supply voltage range and quiescent power consumption of only 26 W extend the battery life in portable systems. The LMP2232 is part of the LMP precision amplifier family. The high impedance CMOS input makes it ideal for instrumentation and other sensor interface applications.

The LMP2232 has a maximum offset voltage of 150 V and maximum offset voltage drift of only 0.5 V/°C along with low bias current of only ±20 fA. These precise specifications make the LMP2232 a great choice for maintaining system accuracy and long term stability.

The LMP2232 has a rail-to-rail output that swings 15 mV from the supply voltage, which increases system dynamic range. The common mode input voltage range extends 200 mV below the negative supply, thus the LMP2232 is ideal for ground sensing in single supply applications.

The LMP2232 is offered in 8-pin SOIC and MSOP packages.

The LMP2231 is the single version of this product and the LMP2234 is the quad version of this product. Both of these products are available on National Semiconductor's website.

Design Tools

Title Size in Kbytes Date
CLC730121EB 8-pin Thermally Enhanced SOIC(PSOP) 119 Kbytes 22-Jun-01 View Online Download
CLC730123EB 8-Pin MSOP Dual Op Amp Evaluation Board 103 Kbytes 22-Jun-01 View Online Download
