LN11CP23, US $ .1-.35, LN11CP23 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003613959 Detail

LN11CP23: LED RED/GREEN CLEAR ROUND

LN11CP23 Data Sheet

US $ .1~.35 / Piece | Get Latest Price

Part Number:: LN11CP23
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000
1000~2500
2500~5000
5000~10000

Unit Price
$.35
$.26
$.22
$.19
$.16
$.13
$.12
$.11
$.1

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

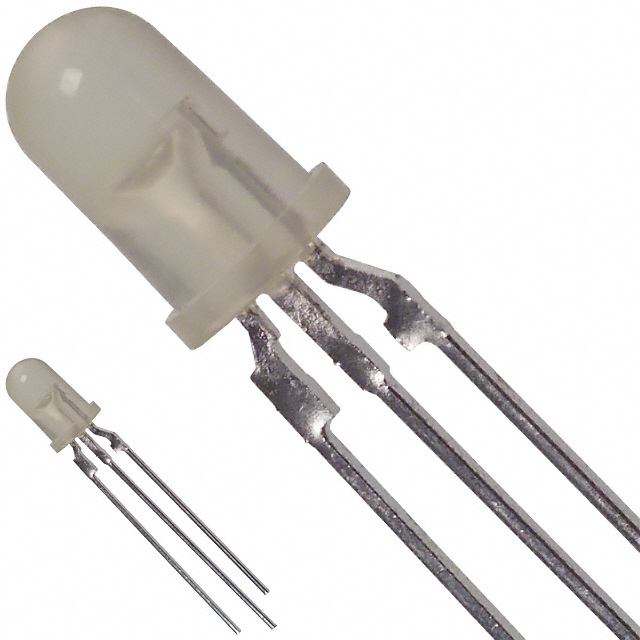

LN11WP23 evaluate
LED RED/GRN DIFFUSED (WHITE) RND

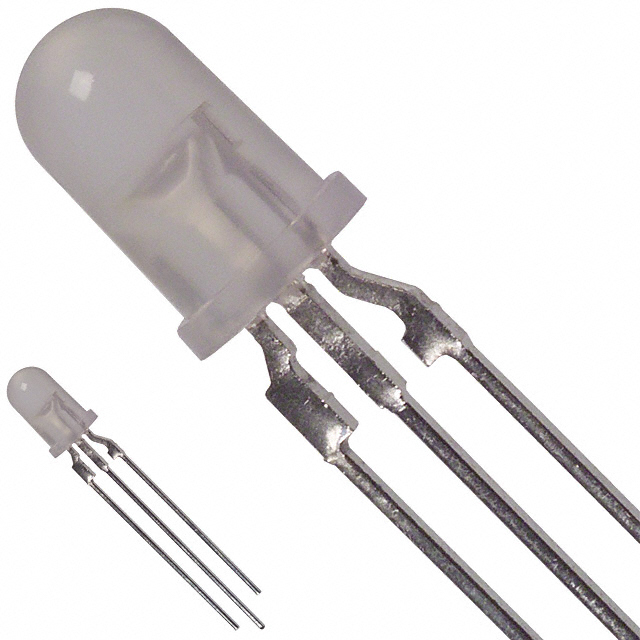

LN11WP24 evaluate
LED RED/AMBR DIFFUSED(WHITE)RND
LN11WP34 evaluate
LED GRN/AMBR DIFFUSED (WHITE)RND

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Green, Red	Millicandela Rating:	20mcd Green, 3mcd Red
Voltage - Forward (Vf) Typ:	2.2V Green, 2.2V Red	Current - Test:	20mA, 15mA
Wavelength - Dominant:	-	Wavelength - Peak:	565nm, 700nm
Viewing Angle:	-	Lens Type:	Clear
Package / Case :	Micro	Lens Style/Size:	Round with Domed Top, 5mm, T-1 3/4
Package / Case:	Radial - 3 Leads	Size / Dimension:	-
Height:	7.65mm	Mounting Type:	Through Hole

Description

Series: -
Lens Type: Clear
Wavelength - Dominant: -
Viewing Angle: -
Size / Dimension: -
Mounting Type: Through Hole
Packaging: Bulk
Lens Style/Size: Round with Domed Top, 5mm, T-1 3/4
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Color: Green, Red
Package / Case: Radial - 3 Leads
Height: 7.65mm
Voltage - Forward (Vf) Typ: 2.2V Green, 2.2V Red
Millicandela Rating: 20mcd Green, 3mcd Red
Wavelength - Peak: 565nm, 700nm
Current - Test: 20mA, 15mA

Specifications

Lighting Color	P_D(mW)	I_F(mA)	I_FP(mA)*	V_R(V)	T_opr(°C)	T_stg(°C)
Red	70	25	150	4	-25 ~ +85	-30 ~ +100
Green	90	30	150	4	-25 ~ +85	-30 ~ +100
Amber	90	30	150	4	-25 ~ +85	-30 ~ +100

Pulse width 1 msec. The condition of I_FP is duty 10%, Pulse width 1 msec
