LN21RCPH, US $ .06-.27, LN21RCPH DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003612929 Detail

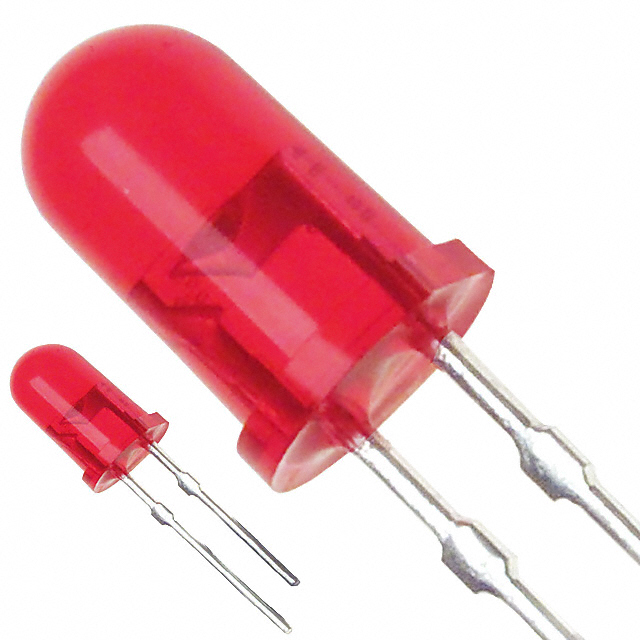

LN21RCPH: LED RED CLEAR 5MM ROUND

LN21RCPH Data Sheet

US $ .06~.27 / Piece | Get Latest Price

Part Number:: LN21RCPH
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000
1000~2500
2500~5000
5000~10000

Unit Price
$.27
$.18
$.15
$.12
$.1
$.07
$.07
$.06
$.06

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LN212RP evaluate
LED RED DIFFUSED
LN213RPP evaluate
Specifications Lighting Color PD(mW) IF(mA) IFP(mA)* VR(V) Topr(°C) Tstg(°C) Red 70...
LN2162C13 evaluate
Specifications Lighting Color PD(mW) IF(mA) IFP(mA)* VR(V) Topr(°C) Tstg(°C...

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Red	Millicandela Rating:	5mcd
Voltage - Forward (Vf) Typ:	2.2V	Current - Test:	20mA
Wavelength - Dominant:	-	Wavelength - Peak:	700nm
Viewing Angle:	-	Lens Type:	-
Package / Case :	Micro	Lens Style/Size:	Round with Domed Top, 5mm, T-1 3/4
Package / Case:	Radial	Size / Dimension:	-
Height:	8.65mm	Mounting Type:	Through Hole

Description

Series: -
Current - Test: 20mA
Voltage - Forward (Vf) Typ: 2.2V
Color: Red
Wavelength - Dominant: -
Viewing Angle: -
Lens Type: -
Size / Dimension: -
Millicandela Rating: 5mcd
Package / Case: Radial
Mounting Type: Through Hole
Packaging: Bulk
Lens Style/Size: Round with Domed Top, 5mm, T-1 3/4
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Wavelength - Peak: 700nm
Height: 8.65mm

Parameters:

Technical/Catalog Information	LN21RCPH
Vendor	Panasonic - SSG
Category	Optoelectronics
Color	Red
Lens Style/Size	Round, 5mm, T-1 3/4
Millicandela Rating	5mcd
Voltage - Forward (Vf) Typ	2.2V
Wavelength - Dominant	700nm
Wavelength - Peak	700nm
Current - Test	20mA
Viewing Angle	30°
Lens Type	Clear, Red Tinted
Luminous Flux	1 mlm
Package / Case	Radial
Mounting Type	Through Hole
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LN21RCPH LN21RCPH P581 ND P581ND P581
