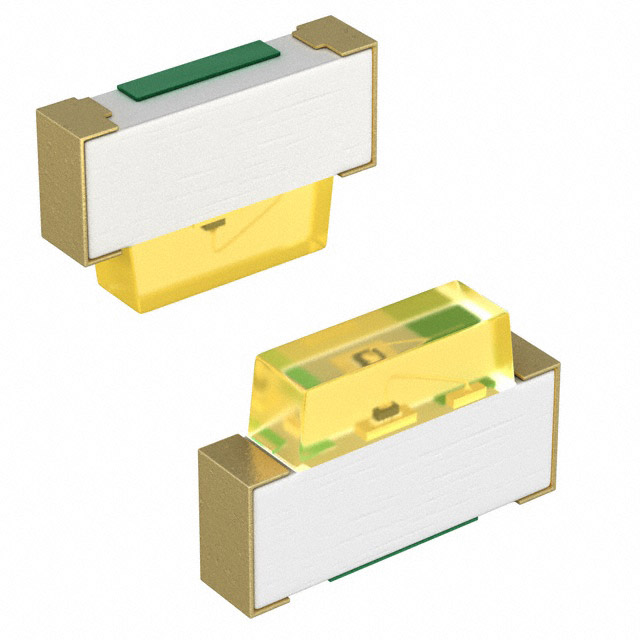

See larger image

SeekIC No. : 003613662 Detail

LNJ408K8ZRA: LED AMBER SS TYPE LOW CUR SMD

LNJ408K8ZRA Data Sheet

US $ .04~.06 / Piece | Get Latest Price

Part Number:: LNJ408K8ZRA
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~4000
4000~8000
8000~12000
12000~28000
28000~52000

Unit Price
$.06
$.06
$.05
$.05
$.04

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Amber	Millicandela Rating:	0.9mcd
Voltage - Forward (Vf) Typ:	1.9V	Current - Test:	5mA
Wavelength - Dominant:	-	Supply Current (Max) :	0.0023 mA
Wavelength - Peak:	590nm	Viewing Angle:	-
Lens Type:	Diffused, Tinted	Lens Style/Size:	Rectangle with Flat Top, 1.1mm x 0.8mm
Package / Case:	0603 (1608 Metric)	Size / Dimension:	1.60mm L x 0.80mm W
Height:	0.80mm	Mounting Type:	Surface Mount

Description

Series: -
Lens Style/Size: Rectangle with Flat Top, 1.1mm x 0.8mm
Package / Case: 0603 (1608 Metric)
Size / Dimension: 1.60mm L x 0.80mm W
Height: 0.80mm
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)Alternate Packaging
Current - Test: 5mA
Wavelength - Dominant: -
Viewing Angle: -
Lens Type: Diffused, Tinted
Voltage - Forward (Vf) Typ: 1.9V
Color: Amber
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Wavelength - Peak: 590nm
Millicandela Rating: 0.9mcd

Specifications

Lighting Color	P_D(mW)	I_F(mA)	I_FP(mA)*	V_R(V)	T_opr()	T_stg()
Red	50	20	100	3	-30 ~ +85	-40 ~ +100
Green	30	10	50	4	-30 ~ +85	-40 ~ +100
Green	50	20	100	4	-30 ~ +85	-40 ~ +100
Amber	50	20	100	4	-30 ~ +85	-40 ~ +100
Amber	30	10	50	4	-30 ~ +85	-40 ~ +100
Orange	30	10	50	3	-30 ~ +85	-40 ~ +100
Soft Orange	50	20	10	3	-30 ~ +85	-40 ~ +100

IFP,duty 10%,Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec

Parameters:

Technical/Catalog Information	LNJ408K8ZRA
Vendor	Panasonic - SSG (VA)
Category	Optoelectronics
Color	Amber
Lens Style/Size	Rectangle, 1.1mm x 0.8mm
Millicandela Rating	0.9mcd
Voltage - Forward (Vf) Typ	1.9V
Wavelength - Dominant	590nm
Wavelength - Peak	590nm
Current - Test	5mA
Viewing Angle	150°
Lens Type	Diffused, Yellow Tinted
Luminous Flux	4 mlm
Package / Case	0603 (1608 metric)
Mounting Type	Surface Mount
Packaging	Cut Tape (CT)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNJ408K8ZRA LNJ408K8ZRA P522CT ND P522CTND P522CT
