LP3992

Features: ·1.9 to 5.2V input range·Accurate 1.5V ± 0.09V output voltage·Less than 1.5µA quiescent current in shutdown·Stable with a 1µF output capacitor·Guaranteed 30mA output current·Low output voltage Noise; 300µVRMSApplication·Operation from a low input voltage; 1.9V·Low quies...

product image

LP3992 Picture
See larger image
SeekIC No. : 004398926 Detail

LP3992: Features: ·1.9 to 5.2V input range·Accurate 1.5V ± 0.09V output voltage·Less than 1.5µA quiescent current in shutdown·Stable with a 1µF output capacitor·Guaranteed 30mA output current·Lo...

LP3992 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LP3992
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·1.9 to 5.2V input range
·Accurate 1.5V ± 0.09V output voltage
·Less than 1.5µA quiescent current in shutdown
·Stable with a 1µF output capacitor
·Guaranteed 30mA output current
·Low output voltage Noise; 300µVRMS




Application

·Operation from a low input voltage; 1.9V
·Low quiescent current; 29µA typical
·Stable with a ceramic capacitor
·Logic controlled shutdown
·Fast turn ON and OFF
·Thermal-overload and short circuit protection
·5 pin package, SOT23
·-40°C to +125°C junction temperature range




Pinout

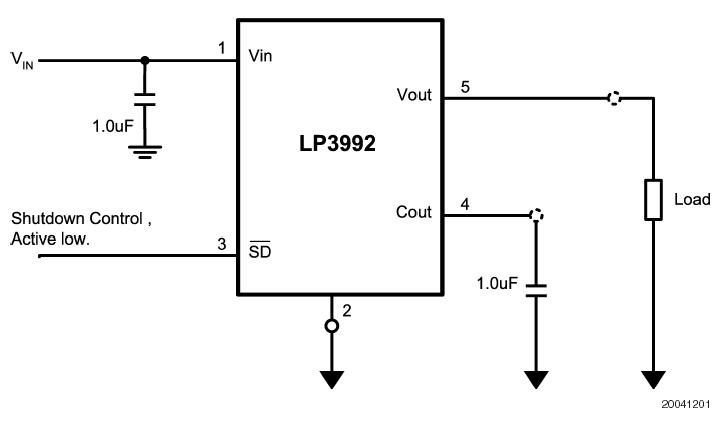

Connection Diagram




Specifications

Output Current 30 mA
Output Min 1.5 Volt
Input Min Voltage 1.9 Volt
Input Max Voltage 5.2 Volt
Adjustable Output No
Quiescent Current 0.026 mA
On/Off Pin Yes
Error Flag No
RegType Linear Regulator
Temperature Min -40 deg C
Temperature Max 125 deg C
Output Voltage 1.5 Volt
Output Max 1.5 Volt
View Using Catalog


Input Voltage -0.3 to 6.5V
Output Voltage -0.3 to (VIN + 0.3V) to 6.5V (max)
Shutdown Input Voltage-0.3 to 6.5V
Junction Temperature 150°C
Lead Temp. (Note 3) 260°C
Storage Temperature-65 to 150°C
Thermal Resistance (Note 4) JA 220°C/W
Maximum Power Dissipation at25°C 568mW
ESD (Note 5)
Human Body Model 2KV
Machine Model 200V




Description

The LP3992 regulator is designed to meet the requirements of portable, battery-powered systems providing an accurate output voltage, low noise, and low quiescent current. Battery life will be prolonged by the ability of the LP3992 to provide a 1.5V output from the low input voltage of 1.9V. Additionally, when switched to a shutdown mode via a logic signal at the shutdown pin, the power consumption is reduced to virtually zero. The LP3992 also features short-circuit and thermal-shutdown protection.

The LP3992 is designed to be stable with space saving ceramic capacitors as small as 1.0µF.

The device is available in an SOT23-5 package. Performance is specified for a -40°C to 125°C temperature range.

For output voltages other than 1.5V and alternative package options, please contact your local NSC sales office.

Reliability Metrics

Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
LP3992IMF-1.5 CMOS7 0 16561 0 0 954000 4 270700104
LP3992IMFX-1.5 CMOS7 0 16561 0 0 954000 4 270700104

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.
