General Description
LPC47U33x General Description
`The LPC47U33x* is a 3.3V PC99 compliant Enhanced Super I/O controller. The LPC47U33x implements the LPC interface, a pin reduced ISA interface which provides the same or better performance as the ISA/X-bus with a substantial savings in pins used. The part provides 37 GPIO pins, a dual game port interface, MPU- 401 MIDI support and ISA IRQ to serial IRQ conversion. The part also provides a fan speed control output and a fan tachometer input.
`The LPC47U33x incorporates a keyboard interface, SMSC's true CMOS 765B floppy disk controller, advanced digital data separator, one 16C550A compatible UART, one MPU-401 MIDI UART, one Multi-Mode parallel port which includes ChiProtect circuitry plus EPP and ECP , and Intelligent Power Management including ACPI, SMI and PME support. The true CMOS 765B core provides 100% compatibility with IBM PC/XT and PC/AT architectures in addition to providing data overflow and underflow protection. The SMSC advanced digital data separator incorporates SMSC's patented data separator technology, allowing for ease of testing and use. The on-chip UART is compatible with the NS16C550A. The parallel port is compatible with IBM PC/AT architecture, as well as IEEE 1284 EPP and ECP. The LPC47U33x incorporates sophisticated power control circuitry (PCC). The PCC supports multiple low power modes. The LPC47U33x also incorporates SMBus Controller.
`The LPC47U33x supports the ISA Plug-and- Play Standard (Version 1.0a) and provides the recommended functionality to support Windows '95 and PC99. The I/O Address, DMA Channel and Hardware IRQ of each logical device in the LPC47U33x may be reprogrammed through the internal configuration registers. There are 480 I/O address location options, a Serialized IRQ interface, and three DMA channels. The LPC47U33x does not require any external filter components and is therefore easy to use and offers lower system costs and reduced board area. The LPC47U33x is software and register compatible with SMSC's proprietary 82077AA core.
`IBM, PC/XT and PC/AT are registered trademarks and PS/2 is a trademark of International Business Machines Corporation SMSC is a registered trademark and Ultra I/O, ChiProtect, and Multi- Mode are trademarks of Standard Microsystems Corporation *The "x" in the part number is a designator that changes depending upon the particular BIOS used inside the specific chip. "2" denotes AMI Keyboard BIOS and "7" denotes Phoenix 42i Keyboard BIOS.
LPC47U33x Maximum Ratings
Operating Temperature Range....................................................................................... .. 0 to +70
Storage Temperature Range.................................................................................... ......-55o to +150
Lead Temperature Range ........................................................... . .......Refer to JEDEC Spec. J-STD-020
Positive Voltage on any pin, with respect to Ground...............................................................VCC+0.3V
Negative Voltage on any pin, with respect to Ground................................................................... -0.3V
Maximum VCC ....................................................................................................................... ......... +7V
Note: Stresses above those listed above could cause permanent damage to the device. This is a stress rating only and functional operation of the device at any other condition above those indicated in the Normal Operation sections of this specification is not implied.
Note: When powering this device from laboratory or system power supplies, it is important that the Absolute Maximum Ratings not be exceeded or device failure can result. Some power supplies exhibit voltage spikes on their outputs when the AC power is switched on or off. In addition, voltage transients on the AC power line may appear on the DC output. If this possibility exists, it is suggested that a clamp circuit be used.
Storage Temperature Range.................................................................................... ......-55o to +150
Lead Temperature Range ........................................................... . .......Refer to JEDEC Spec. J-STD-020
Positive Voltage on any pin, with respect to Ground...............................................................VCC+0.3V
Negative Voltage on any pin, with respect to Ground................................................................... -0.3V
Maximum VCC ....................................................................................................................... ......... +7V
Note: Stresses above those listed above could cause permanent damage to the device. This is a stress rating only and functional operation of the device at any other condition above those indicated in the Normal Operation sections of this specification is not implied.
Note: When powering this device from laboratory or system power supplies, it is important that the Absolute Maximum Ratings not be exceeded or device failure can result. Some power supplies exhibit voltage spikes on their outputs when the AC power is switched on or off. In addition, voltage transients on the AC power line may appear on the DC output. If this possibility exists, it is suggested that a clamp circuit be used.
LPC47U33x Features
· 3.3 Volt Operation (5V Tolerant)
· LPC Interface
· Floppy Disk Controller (Supports 2 FDCs)
· Multi-Mode Parallel Port
· One Full Function UART
· MPU-401 MIDI UART
· 8042 Keyboard Controller
· Dual Game Port
· SMBus Controller
· Programmable Wakeup Event Interface (nIO_PME Pin)
· SMI Support (nIO_SMI Pin)
· GPIO Pins (37)
· Fan Speed Control Output
· Fan Tachometer Input
· ISA IRQ to Serial IRQ Conversion
· XNOR Chain
· PC99 and ACPI 1.0 Compliant
· ISA Plug-and-Play Compatible Register Set
· Intelligent Auto Power Management
· 2.88MB Super I/O Floppy Disk Controller
- Licensed CMOS 765B Floppy Disk Controller
- Software and Register Compatible with SMSC's Proprietary 82077AA Compatible Core
- Configurable Open Drain/Push-Pull Output Drivers
- Supports Vertical Recording Format
- 16-Byte Data FIFO
- 100% IBM® Compatibility
- Detects All Overrun and Underrun Conditions
- Sophisticated Power Control Circuitry (PCC) Including Multiple Powerdown Modes for Reduced Power Consumption
- DMA Enable Logic
- Data Rate and Drive Control Registers
- 480 Address, up to 15 IRQ and 3 DMA Options
· Enhanced Digital Data Separator
- 2 Mbps, 1 Mbps, 500 Kbps, 300 Kbps, 250 Kbps Data Rates
- Programmable Precompensation Modes
· Keyboard Controller
- 8042 Software Compatible
- 8-Bit Microcomputer
- 2k Bytes of Program ROM
- 256 Bytes of Data RAM
- Four Open Drain Outputs Dedicated for Keyboard/Mouse Interface
- Asynchronous Access to Two Data Registers and One Status Register
- Supports Interrupt and Polling Access
- 8-Bit Counter Timer
- Port 92 Support
- Fast Gate A20 and KRESET Outputs
· Serial Port
- One Full Function Serial Port
- High Speed NS16C550 Compatible UART with Send/Receive 16-Byte FIFOs
- Supports 230k and 460k Baud
- Programmable Baud Rate Generator
- Modem Control Circuitry
- 480 Address and 15 IRQ Options
- Second UART for MPU-401 MIDI Interface
· LPC Interface
· Floppy Disk Controller (Supports 2 FDCs)
· Multi-Mode Parallel Port
· One Full Function UART
· MPU-401 MIDI UART
· 8042 Keyboard Controller
· Dual Game Port
· SMBus Controller
· Programmable Wakeup Event Interface (nIO_PME Pin)
· SMI Support (nIO_SMI Pin)
· GPIO Pins (37)
· Fan Speed Control Output
· Fan Tachometer Input
· ISA IRQ to Serial IRQ Conversion
· XNOR Chain
· PC99 and ACPI 1.0 Compliant
· ISA Plug-and-Play Compatible Register Set
· Intelligent Auto Power Management
· 2.88MB Super I/O Floppy Disk Controller
- Licensed CMOS 765B Floppy Disk Controller
- Software and Register Compatible with SMSC's Proprietary 82077AA Compatible Core
- Configurable Open Drain/Push-Pull Output Drivers
- Supports Vertical Recording Format
- 16-Byte Data FIFO
- 100% IBM® Compatibility
- Detects All Overrun and Underrun Conditions
- Sophisticated Power Control Circuitry (PCC) Including Multiple Powerdown Modes for Reduced Power Consumption
- DMA Enable Logic
- Data Rate and Drive Control Registers
- 480 Address, up to 15 IRQ and 3 DMA Options
· Enhanced Digital Data Separator
- 2 Mbps, 1 Mbps, 500 Kbps, 300 Kbps, 250 Kbps Data Rates
- Programmable Precompensation Modes
· Keyboard Controller
- 8042 Software Compatible
- 8-Bit Microcomputer
- 2k Bytes of Program ROM
- 256 Bytes of Data RAM
- Four Open Drain Outputs Dedicated for Keyboard/Mouse Interface
- Asynchronous Access to Two Data Registers and One Status Register
- Supports Interrupt and Polling Access
- 8-Bit Counter Timer
- Port 92 Support
- Fast Gate A20 and KRESET Outputs
· Serial Port
- One Full Function Serial Port
- High Speed NS16C550 Compatible UART with Send/Receive 16-Byte FIFOs
- Supports 230k and 460k Baud
- Programmable Baud Rate Generator
- Modem Control Circuitry
- 480 Address and 15 IRQ Options
- Second UART for MPU-401 MIDI Interface

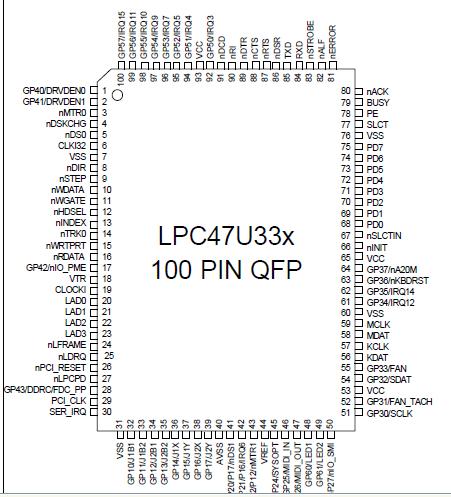

LPC47U33x Connection Diagram
LPC47U33x
PDF/DataSheet Download
- Datasheet: LPC47U33x
- File Size: 1024358 KB
- Manufacturer: SMSC [SMSC Corporation]
- Click here to Download
- ·LPC1901-7D
- POWER-ONE [Power-One]
- 190...230 Watt AC-DC Converters
- 63657 KB
- ·LPC1902-7D
- POWER-ONE [Power-One]
- 190...230 Watt AC-DC Converters
- 63657 KB
- ·LPC2103
- Philips
- LPC2103_Philips.pdf
- 165270 KB
- ·LPC2104
- PHILIPS [Philips Semiconductors]
- Single-chip 32-bit microcontrollers; 128 kB ISP/IAP Flash with 64 kB/32 kB/16 kB RAM
- 158835 KB
- ·LPC2104BBD48
- PHILIPS [Philips Semiconductors]
- Single-chip 32-bit microcontrollers; 128 kB ISP/IAP Flash with 64 kB/32 kB/16 kB RAM
- 158835 KB
- ·LPC2105
- PHILIPS [Philips Semiconductors]
- Single-chip 32-bit microcontrollers; 128 kB ISP/IAP Flash with 64 kB/32 kB/16 kB RAM
- 158835 KB
- ·LPC2105BBD48
- PHILIPS [Philips Semiconductors]
- Single-chip 32-bit microcontrollers; 128 kB ISP/IAP Flash with 64 kB/32 kB/16 kB RAM
- 158835 KB
- ·LPC2106
- PHILIPS [Philips Semiconductors]
- Single-chip 32-bit microcontrollers; 128 kB ISP/IAP Flash with 64 kB/32 kB/16 kB RAM
- 158835 KB
