LPC661IMX/NOPB, US $ .49-.53 , National Semiconductor (TI), LPC661IMX/NOPB DataSheet download, circuit diagram from SeekIC.com

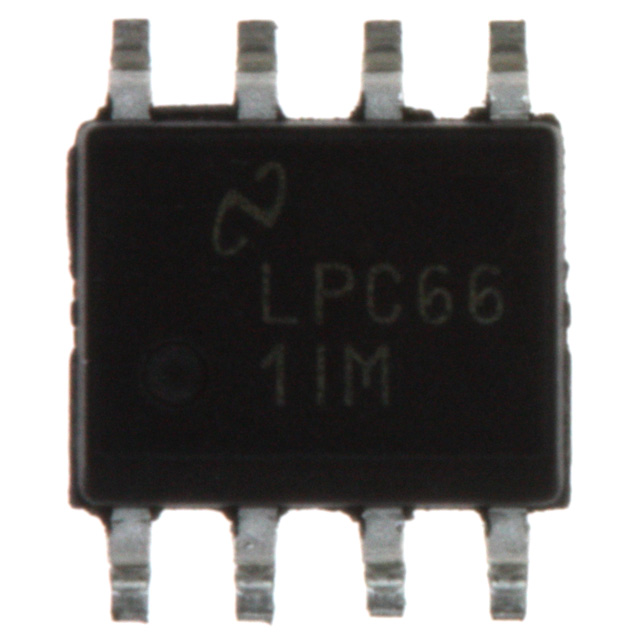

See larger image

SeekIC No. : 00294740 Detail

LPC661IMX/NOPB: Operational Amplifiers - Op Amps

LPC661IMX/NOPB Data Sheet

US $ .49~.53 / Piece | Get Latest Price

Part Number:: LPC661IMX/NOPB
Mfg:: National Semiconductor (TI)
Supply Ability:: 5000

Price Break

Qty
0~1860
1860~2500
2500~5000
5000~10000

Unit Price
$.53
$.53
$.51
$.49

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LPC660 evaluate
Features: ` Rail-to-rail output swing` Micropower operation: (1 mW)` Specified for 100 kW and 5 kW...
LPC660AIM evaluate
US $1.1 - 1.6 / Piece

Operational Amplifiers - Op Amps
LPC660AIM/NOPB evaluate
US $1.6 - 2.42 / Piece

Operational Amplifiers - Op Amps Low Power CMOS Quad Op Amp

Product Details

Quick Details

Number of Channels :	1	Common Mode Rejection Ratio (Min) :	63 dB
Input Offset Voltage :	6 mV at 5 V	Operating Supply Voltage :	5 V, 9 V, 12 V, 15 V
Mounting Style :	SMD/SMT	Package / Case :	SOIC-8 Narrow
Slew Rate :	0.11 V/us at 5 V	Shutdown :	No
Maximum Operating Temperature :	+ 85 C	Packaging :	Reel

Description

Input Bias Current (Max) :
Output Current :
Number of Channels : 1
Mounting Style : SMD/SMT
Packaging : Reel
Shutdown : No
Maximum Operating Temperature : + 85 C
Operating Supply Voltage : 5 V, 9 V, 12 V, 15 V
Package / Case : SOIC-8 Narrow
Common Mode Rejection Ratio (Min) : 63 dB
Input Offset Voltage : 6 mV at 5 V
Slew Rate : 0.11 V/us at 5 V

Parameters:

Technical/Catalog Information	LPC661IMX/NOPB
Vendor	National Semiconductor
Category	Integrated Circuits (ICs)
Packaging	Tape & Reel (TR)
Amplifier Type	General Purpose
Number of Circuits	1 - Single
Package / Case	8-SOIC (3.9mm Width)
Slew Rate	0.11 V/s
Gain Bandwidth Product	350kHz
Current - Supply	58A
Current - Output / Channel	40mA
Voltage - Supply, Single/Dual (±)	4.75 V ~ 15.5 V, ±2.38 V ~ 7.75 V
Output Type	Rail-to-Rail
-3db Bandwidth	-
Current - Input Bias	0.002pA
Operating Temperature	-40°C ~ 85°C
Voltage - Input Offset	1000V
Drawing Number	14; M08A; ; 8
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LPC661IMX NOPB LPC661IMXNOPB LPC661IMX ND LPC661IMXND LPC661IMX
