LS7062

Features: • DC to 15 MHz Count Frequency• Byte Multiplexer• DC to 1 MHz Scan Frequency• +4.75V to +5.25V Operation (VDD-VSS)• Three-State Data Outputs, Bus and TTL Compatible• Inputs TTL and CMOS Compatible• Unique Cascade Feature Allows Multiplexing of Su...

product image

LS7062 Picture
See larger image
SeekIC No. : 004399938 Detail

LS7062: Features: • DC to 15 MHz Count Frequency• Byte Multiplexer• DC to 1 MHz Scan Frequency• +4.75V to +5.25V Operation (VDD-VSS)• Three-State Data Outputs, Bus and TTL Comp...

LS7062 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LS7062
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• DC to 15 MHz Count Frequency
• Byte Multiplexer
• DC to 1 MHz Scan Frequency
• +4.75V to +5.25V Operation (VDD-VSS)
• Three-State Data Outputs, Bus and TTL Compatible
• Inputs TTL and CMOS Compatible
• Unique Cascade Feature Allows Multiplexing of Successive Bytes of Data in Sequence in Multiple Counter Systems
• Low Power Dissipation
• LS7060, LS7062 (DIP); LS7060-S, LS7062-S (SOIC) See Figures 1 and 2


Pinout

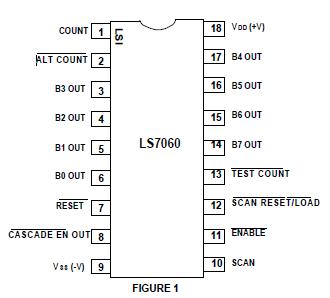

Connection Diagram


Specifications

PARAMETER

SYMBOL

VALUE

UNIT

StorageTemperature

TSTG

-55 to +150

Operating Temperature

TA

0 to +70

Voltage (any pin to VSS)

VIN

+10 to -0.3

V




Description

The LS7060/LS7062 is a monolithic, ion implanted MOS Silicon Gate, 32 bit/dual 16 bit up counter. The IC includes latches, multiplexer, eight three-state binary data output drivers and output cascading logic.
