LSC2210

Features:

• >1 Milliwatt Optical Output

• Center Wavelength between 1520 nm and 1565 nm

• Modulation Capability up to 1 Gbit/s

• Wide Operating Temperature Range: -20°C to +65°C

• Industry Standard Hermetic 14 PIN Dual-In-Line Package


Application

• Telecommunications

• Fiber Optic Sensors

• Cable Television

• Military Communications and Control Systems

• Instrumentation

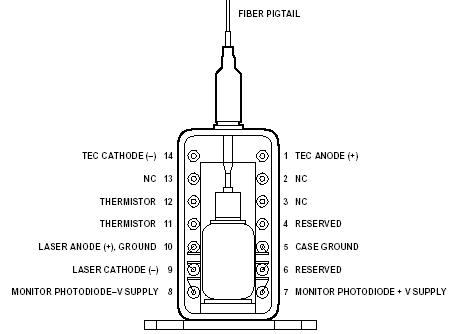

Pinout




Specifications

Absolute maximum limits mean that no catastrophic damage will occur if the product is subjected to these ratings for short periods, provided each limiting parameter is in isolation and all other parameters have values within the performance specification. It should not be assumed that limiting values of more than one parameter can be applied to the product at the same time.

Parameter	Minimum	Maximum	Units
Laser Forward Current	-	150	mA
Laser Reverse Current	-	10	mA
Laser Reverse Voltage	-	2.0	V
Photodiode Forward Current	-	1	mA
Photodiode Reverse Voltage (Vr)	-	-10	V
Fiber Pull Strength	-	10	N
Operating Temperature (Case)	-20	+65	°C
Storage Temperature	-40	+85	°C
Mechanical Shock	Mil Std 883, Method 2002, Test Condition B
Vibration	Mil Std 883, Method 2007, Test Condition A

Notes:
1. At 25°C and Pf = 1 mW unless otherwise specified.
2. As measured using optical spectrum analysis.
3. Measured at 565 Mbit/s, Ith -2 mA = "0" level. Ith +40 mA = "1" level.

Description

LSC2210 laser modules are highly reliable fiber optic light sources operating in the 1550 nanometer band. The internal DFB lasers are based upon InGaAsP ridge waveguide technology and fabricated by the Metal Organic Vapor Phase Epitaxy (MOVPE) process, resulting in long lifetimes and modest threshold currents.

The LSC2210 package includes a photodiode for monitoring the laser output, a thermistor for monitoring laser heatsink temperature, and a Peltier effect thermoelectric cooler (TEC). A heatsink mounting flange is incorporated into the industry standard 14 PIN package.
