Part Number: LSC2110-622
Description: LSC2110-622 laser modules are highly reliable fiber optic light sources operating in the 1300 nanometer band. The internal semiconductor l...
- Table of contents:
LSC2110-622
-
Suppliers
DataSheet
General Description
LSC2110-622 General Description
LSC2110-622 laser modules are highly reliable fiber optic light sources operating in the 1300 nanometer band. The internal semiconductor lasers are based upon InGaAsP buried heterostructure (BH) technology and fabricated by the Metal Organic Vapor Phase Epitaxy (MOVPE) process, resulting in long lifetimes and modest threshold currents.
LSC2110-622 package includes a photodiode for monitoring the laser output, a thermistor for monitoring the laser submodule temperature and a Peltier effect thermoelectric cooler (TEC). A heatsink mounting flange is incorporated into the industry standard 14 pin package.
The LSC2110-622 has been specifically designed to meet the requirements of STM4.1 and SONET OC12 LR1 applications.
LSC2110-622 Maximum Ratings
|
Parameter |
Symbol |
Test Conditions |
Ratings |
Units | |
|
Min. |
Max. | ||||
|
MONITOR PHOTODIODE |
Tc = -40°C to +85°C, DT = +65°C(heating) DT = -40°C (cooling), CW, Pf = 2.5 mW Vr = 5 V (Note 1), unless otherwise specified |
||||
|
Photocurrent |
Im |
0.1 |
0.2 |
mA | |
|
Responsivity |
R |
0.4 |
0.8 |
A/W | |
|
Dark Current |
Id |
Pf = 0 mW, Tc = ~25°C, Rt = 10 kW |
- |
20 |
nA |
|
Tracking Error |
DR |
Im = Im @ (Pf = 2.5 mW, Tc = 25°C) |
- |
± 0.5 |
dB |
LSC2110-622 Features
• 2.5 Milliwatt Peak Optical Power Output
• Center Wavelength between 1294 nm and 1329 nm
• Narrow Linewidth: <1.7 nm
• Modulation Bandwidth: >1 Ghz
• Wide Operating Temperature Range: -40°C to +85°C
• Industry Standard Hermetic 14 Pin Dual-In-Line Package
• Center Wavelength between 1294 nm and 1329 nm
• Narrow Linewidth: <1.7 nm
• Modulation Bandwidth: >1 Ghz
• Wide Operating Temperature Range: -40°C to +85°C
• Industry Standard Hermetic 14 Pin Dual-In-Line Package
LSC2110-622 Typical Application
• 622 Mbit/s SONET/SDH
• Local Area and Metropolitan Area Networks
• Point-to-Point Data Communications
• Fiber Optic Sensors
• Cable Television
• Military Communications and Control Systems
• Instrumentation

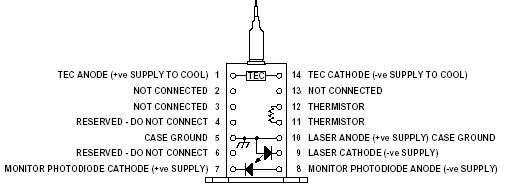

LSC2110-622 Connection Diagram
