Part Number: LT1058
MFG: LT
D/C: 03+
Description: The LT®1057 is a matched JFET input dual op amp in the industry standard 8-pin configur...
- Table of contents:
LT1058
-
Suppliers
DataSheet
General Description
LT1058 General Description
The LT®1057 is a matched JFET input dual op amp in the industry standard 8-pin configuration, featuring a combination of outstanding high speed and precision specifications. It replaces all the popular bipolar and JFET input dual op amps. In particular, the LT1057 upgrades the performance of systems using the LF412A and OP-215 JFET input duals.
The LT1058 is the lowest offset quad JFET input operational amplifier in the standard 14-pin configuration. It offers significant accuracy improvement over presently available JFET input quad operational amplifiers. The LT1058 can replace four single precision JFET input op amps, while saving board space, power dissipation and cost.
Both the LT1057 and LT1058 are available in the plastic PDIP package and the surface mount SO package.
LT1058 Maximum Ratings
Supply Voltage ...................................................± 20V
Differential Input Voltage ...................................± 40V
Input Voltage .....................................................± 20V
Output Short-Circuit Duration ...................... Indefinite
Storage Temperature Range ......... 65°C to 150°C
Lead Temperature (Soldering, 10 sec)............. 300°C
Operating Temperature Range
LT1057AM/LT1057M/
LT1058AM/LT1058M (OBSOLETE)... 55°C to 125°C
LT1057AC/LT1057C/LT1057S
LT1058AC/LT1058C/LT1058S .............. 0°C to 70°C
LT1057I .................................. 40°C TA 85°C
LT1058 Features
14V/s Slew Rate: 10V/s Min
5MHz Gain-Bandwidth Product
Fast Settling Time: 1.3s to 0.02%
150V Offset Voltage (LT1057): 450V Max
180V Offset Voltage (LT1058): 600V Max
2V/°C VOS Drift: 7V/°C Max
50pA Bias Current at 70°C
Low Voltage Noise:
13nV/Hz at 1kHz
26nV/Hz at 10Hz
5MHz Gain-Bandwidth Product
Fast Settling Time: 1.3s to 0.02%
150V Offset Voltage (LT1057): 450V Max
180V Offset Voltage (LT1058): 600V Max
2V/°C VOS Drift: 7V/°C Max
50pA Bias Current at 70°C
Low Voltage Noise:
13nV/Hz at 1kHz
26nV/Hz at 10Hz
LT1058 Typical Application
Precision, High Speed Instrumentation
Fast, Precision Sample-and-Hold
Logarithmic Amplifiers
D/A Output Amplifiers
Photodiode Amplifiers
Voltage-to-Frequency Converters
Frequency-to-Voltage Converters
Fast, Precision Sample-and-Hold
Logarithmic Amplifiers
D/A Output Amplifiers
Photodiode Amplifiers
Voltage-to-Frequency Converters
Frequency-to-Voltage Converters

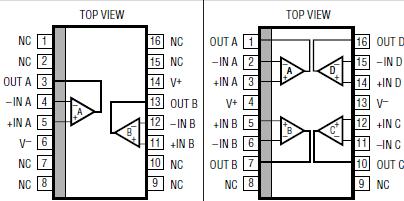

LT1058 Connection Diagram
