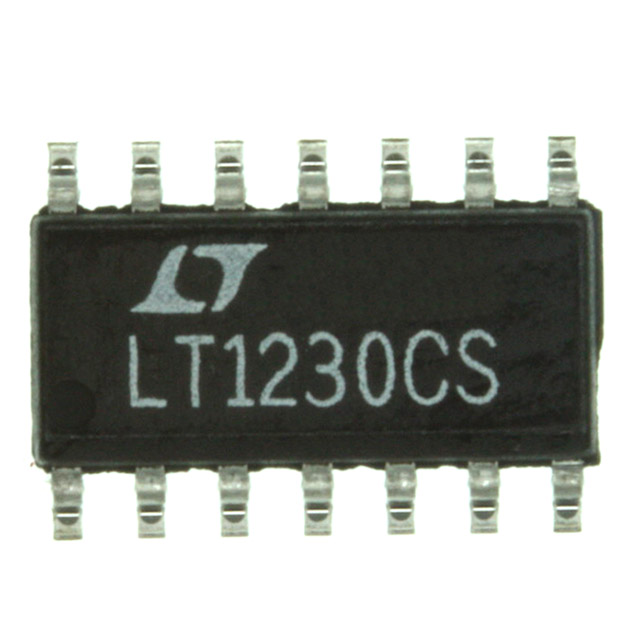

MFG:Linear Technology Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: Linear Technology
Descriptions: IC AMP CURR FEEDBACK QUAD 14SOIC
2500
7.55000
18875.00
| Technical/Catalog Information | LT1230CS#TR |
| Vendor | Linear Technology |
| Category | Integrated Circuits (ICs) |
| Packaging | Tape & Reel (TR) |
| Amplifier Type | Current Feedback |
| Number of Circuits | 4 - Quad |
| Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
| Slew Rate | 2500 V/s |
| Gain Bandwidth Product | - |
| Current - Supply | 6mA |
| Current - Output / Channel | 125mA |
| Voltage - Supply, Single/Dual (±) | 4 V ~ 30 V, ±2 V ~ 15 V |
| Output Type | - |
| -3db Bandwidth | 100MHz |
| Current - Input Bias | 10A |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Input Offset | 3000V |
| Drawing Number | 161; 05-08-1610; S, S8; 8, 14, 16 |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | LT1230CS#TR LT1230CS#TR |
LT10.7MS2
PDF/DataSheet Download
IC CURR FEEDBACK AMP QUAD 14SOIC
IC CURR FEEDBACK AMP QUAD 14SOIC
IC CURRNT FEEDBCK AMP QUAD 14DIP
IC CURRNT FEEDBCK AMP QUAD 14DIP
The LT®1229/LT1230 dual and quad 100MHz current feedback amplifiers are designed for maximum performance in small packages. Using industry standard pinouts, the dual is available in the 8-pin miniDIP and the 8-pin SO package while the quad is in the 14-p...
The LT1229/LT1230 dual and quad 100MHz current feed-back amplifiers are designed for maximum performance in small packages. Using industry standard pinouts, the dual is available in the 8-pin miniDIP and the 8-pin SO package while the quad is in the 14-pin D...
