Purchase LT1776CS8#PBF, In-stock LT1776CS8#PBF From SeekIC.

MFG:Linear Technology  Category:Integrated Circuits (ICs)

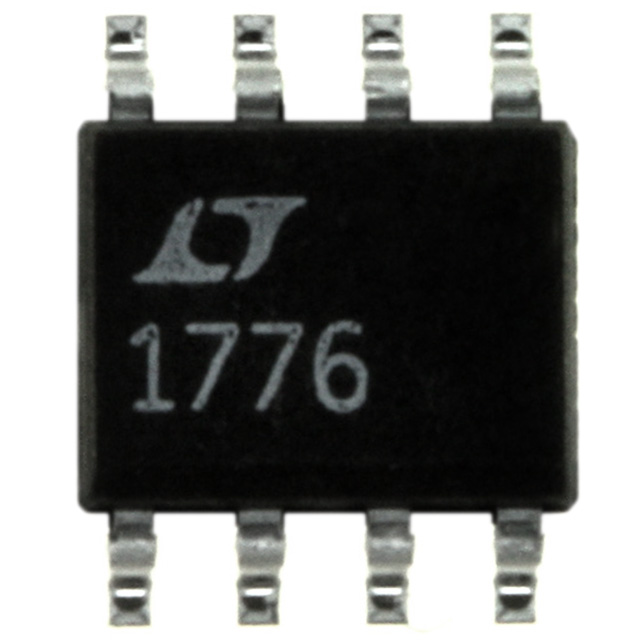

LT1776CS8#PBF

LT1 Series Datasheet download

Five Points

Part Number: LT1776CS8#PBF

Category: Integrated Circuits (ICs)

MFG: Linear Technology





Descriptions: IC SW REG STEP-DOWN HI-EFF 8SOIC

Price Break

1
25
100

Unit Price

5.25000
3.48600
2.75000

Extended Price

5.25
87.15
275.00

(All prices are in USD) Prices for reference only
Urgent Purchase

LT1776CS8#PBF General Description

IC SW REG STEP-DOWN HI-EFF 8SOIC

LT1776CS8#PBF Parameters

Technical/Catalog InformationLT1776CS8#PBF
VendorLinear Technology
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck)
Number of Outputs1
Voltage - Input7.4 ~ 40 V
Voltage - Output1.24 ~ 34 V
Current - Output700mA
Power - Output-
Package / Case8-SOIC (3.9mm Width)
PackagingTube
Internal Switch(s)Yes
SynchronousYes
Rds (On)-
Operating Temperature0°C ~ 125°C
Frequency - Switching200kHz
Drawing Number161; 05-08-1610; S; 8
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LT1776CS8#PBF
