LTC1420CGN

Series: -
Number of Converters: 1
Voltage Supply Source: Single Supply
Mounting Type: Surface Mount
Number of Bits: 12
Number of Inputs and Type: 2 Single-Ended, Bipolar; 1 Differential, Bipolar
Packaging: Tube
Operating Temperature: 0°C ~ 70°C
Data Interface: Parallel
Supplier Device Package: 28-SSOP
Sampling Rate (Per Second): 10M
Manufacturer: Linear Technology
Package / Case: 28-SSOP (0.154", 3.90mm Width)
Power Dissipation (Max): 300mW


Features:

10Msps Sample Rate
Single 5V Supply or ±5V Supplies
Integral Nonlinearity Error <0.35LSB
Differential Nonlinearity <0.25LSB
71dB S/(N + D) and 83dB SFDR at Nyquist
100MHz Full-Power Bandwidth Sampling
±2.048V, ±1.024V and ±0.512V Bipolar Input Range
Input PGA
Out-of-Range Indicator
True Differential Inputs with 75dB CMRR
Power Dissipation: 250mW
28-Pin Narrow SSOP Package


Application

Telecommunications
Digital Signal Processing
Multiplexed Data Acquisition Systems
High Speed Data Acquisition
Spectral Analysis
 Imaging Systems

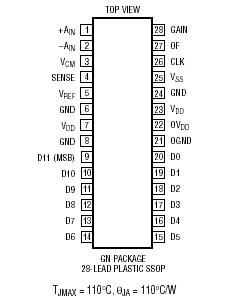

Pinout




Specifications

Supply Voltage (VDD) ................................................. 6V
Negative Supply Voltage (VSS) ................................ 6V
Total Supply Voltage (VDD to VSS) ........................... 12V
Analog Input Voltage
(Note 3) ............................. (VSS  0.3V) to (VDD + 0.3V)
Digital Input Voltage
(Note 4) ............................. (VSS  0.3V) to (VDD + 0.3V)
Digital Output Voltage ........ (VSS  0.3V) to (VDD + 0.3V)
Power Dissipation .............................................. 500mW
Operating Temperature Range
LTC1420C ............................................... 0°C to 70°C
LTC1420I............................................ 40°C to 85°C
Storage Temperature Range .............. 65°C to 150°C
Lead Temperature (Soldering, 10 sec).................. 300°C


Description

The LTC®1420 is a 10Msps, 12-bit sampling A/D converter that draws only 250mW from either single 5V or dual ±5V supplies. This easy-to-use device includes a high dynamic range sample-and-hold, a precision reference and a PGA input circuit.

The LTC1420 has a flexible input circuit that allows fullscale input ranges of ±2.048V ±1.024V and ±0.512V. The input common mode voltage is arbitrary, though a 2.5V reference is provided for single supply applications. The input PGA has a digitally selectable 1x or 2x gain. Maximum DC specs include ±1LSB INL and ±1LSB DNL over temperature.

Outstanding AC performance includes 71dB S/(N + D) and 83dB SFDR at the Nyquist input frequency of 5MHz. The unique differential input sample-and-hold of LTC1420 can acquire single-ended or differential input signals up to its 100MHz bandwidth.

The 75dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source. A separate output logic supply allows direct connection to 3V components.



Parameters:

Technical/Catalog Information
LTC1420CGN
Vendor
Linear Technology
Category
Integrated Circuits (ICs)

Number of Bits
12
Package / Case
28-SSOP
Data Interface
Parallel
Packaging
Tube
Sampling Rate (Per Second)
10M
Operating Temperature
0°C ~ 70°C
Voltage Supply Source
Single
Number of Inputs and Type
2 Single-Ended, Bipolar; 1 Differential, Bipolar
Number of Converters
1
Power Dissipation (Max)
300mW
Drawing Number
161; 05-08-1641; GN; 16

Lead Free Status
Contains Lead

RoHS Status
RoHS Non-Compliant
