LTC1629CG-PG

Buck: Yes
Inverting: No
Doubler: No
Divider: No
Cuk: No
Isolated: No
PWM Type: Current Mode
Number of Outputs: 1
Packaging: Tube
Boost: No
Flyback: No
Frequency - Max: 360kHz
Operating Temperature: 0°C ~ 85°C
Duty Cycle: 99.5%
Manufacturer: Linear Technology
Series: PolyPhase®
Voltage - Supply: 4 V ~ 36 V
Package / Case: 28-SSOP (0.209", 5.30mm Width)


Features:

·Dual Controller Operates from One to Twelve Phases
·Reduces Required Input Capacitance and Power Supply Induced Noise
· Current Mode Control Ensures Current Sharing
· Phase-Lockable Fixed Frequency: 150kHz to 300kHz
· 1.8MHz Effective Switching Frequency
· True Remote Sensing Differential Amplifier
· OPTI-LOOPTM Compensation Reduces COUT
·±1% Output Voltage Accuracy
· Power Good Output Voltage Monitor (LTC1629-PG)
· Wide VIN Range: 4V to 36V Operation
· Very Low Dropout Operation: 99% Duty Cycle
· Adjustable Soft-Start Current Ramping
· Internal Current Foldback Plus Shutdown Timer
· Overvoltage Soft-Latch Eliminates Nuisance Trips
· Micropower Shutdown
· Available in 28-Lead SSOP Package


Application

· Desktop Computers
· Internet Servers
· Large Memory Arrays
· DC Power Distribution Systems

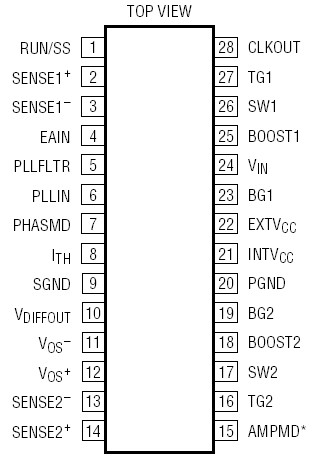

Pinout




Specifications

Input Supply Voltage (VIN).........................36V to 0.3V
Topside Driver Voltages (BOOST1,2) .........42V to 0.3V
Switch Voltage (SW1, 2) .............................36V to 5 V
SENSE1+, SENSE2+, SENSE1,
SENSE2 Voltages ..................... (1.1)INTVCC to 0.3V
EAIN, VOS+, VOS, EXTVCC, INTVCC,
RUN/SS, AMPMD, PGOOD Voltages...............7V to 0.3V
Boosted Driver Voltage (BOOST-SW) ..........7V to 0.3V
PLLFLTR, PLLIN, CLKOUT, PHASMD,
VDIFFOUT Voltages ............................ INTVCC to 0.3V
ITH Voltage ..............................................2.7V to 0.3V
Peak Output Current <1ms(TGL1,2, BG1,2) .............. 5A
INTVCC RMS Output Current ................................ 50mA
Operating Ambient Temperature Range
LTC1629C/LTC1629C-PG ......................... 0°C to 85°C
LTC1629I/LTC1629I-PG ...................... 40°C to 85°C
Junction Temperature (Note 2) .......................... 125°C
Storage Temperature Range ............ 65°C to 150°C
Lead Temperature (Soldering, 10 sec)................ 300°C


Description

The LTC®1629/LTC1629-PG are multiple phase, dual, synchronous step-down current mode switching regulator controllers that drive N-channel external power MOSFET stages in a phase-lockable fixed frequency architecture. The PolyPhaseTM controller drives its two output stages out of phase at frequencies up to 300kHz to minimize the RMS ripple currents in both input and output capacitors. The output clock signal allows expansion for up to 12 evenly phased controllers for systems requiring 15A to 200A of output current. The multiple phase technique effectively multiplies the fundamental frequency by the number of channels used, improving transient response while operating each channel at an optimum frequency for efficiency. Thermal design is also simplified.

An internal differential amplifier of LTC1629/LTC1629-PG  provides true remote sensing of the regulated supply's positive and negative output terminals as required for high current applications.

A RUN/SS pin provides both soft-start and optional timed, short-circuit shutdown. Current foldback limits MOSFET dissipation during short-circuit conditions when the overcurrent latchoff is disabled. OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC1629-PG includes a power good output pin that replaces the AMPMD control pin of the LTC1629.

Parameters:

Technical/Catalog Information	LTC1629CG-PG
Vendor	Linear Technology
Category	Integrated Circuits (ICs)
Type	Step-Down (Buck)
Number of Outputs	2
Voltage - Input	4 ~ 36 V
Voltage - Output	-
Current - Output	5A
Power - Output	-
Package / Case	28-SSOP
Packaging	Tube
Internal Switch(s)	No
Synchronous	Yes
Rds (On)	-
Operating Temperature	0°C ~ 85°C
Frequency - Switching	1.8MHz
Drawing Number	161; 05-08-1640; G; 16
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	LTC1629CG PG LTC1629CGPG
