LTC2228

Features: Sample Rate: 65Msps/40Msps/25Msps Single 3V Supply (2.7V to 3.4V) Low Power: 205mW/120mW/75mW 71dB SNR up to 70MHz Input 80dB SFDR up to 140MHz Input No Missing Codes Flexible Input: 1VP-P to 2VP-P Range 575MHz Full Power Bandwidth S/H Clock Duty Cycle Stabilizer Shutdown and Nap Modes ...

product image

LTC2228 Picture
See larger image
SeekIC No. : 004402015 Detail

LTC2228: Features: Sample Rate: 65Msps/40Msps/25Msps Single 3V Supply (2.7V to 3.4V) Low Power: 205mW/120mW/75mW 71dB SNR up to 70MHz Input 80dB SFDR up to 140MHz Input No Missing Codes Flexible Input: 1VP-...

LTC2228 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC2228
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Sample Rate: 65Msps/40Msps/25Msps
Single 3V Supply (2.7V to 3.4V)
Low Power: 205mW/120mW/75mW
71dB SNR up to 70MHz Input
80dB SFDR up to 140MHz Input
No Missing Codes
Flexible Input: 1VP-P to 2VP-P Range
575MHz Full Power Bandwidth S/H
Clock Duty Cycle Stabilizer
Shutdown and Nap Modes
Pin Compatible Family
   80Msps: LTC2229 (12-Bit), LTC2249 (14-Bit)
   65Msps: LTC2228 (12-Bit), LTC2248 (14-Bit)
   40Msps: LTC2227 (12-Bit), LTC2247 (14-Bit)
   25Msps: LTC2226 (12-Bit), LTC2246 (14-Bit)
   10Msps: LTC2225 (12-Bit), LTC2245 (14-Bit)
32-Pin (5mm * 5mm) QFN Package


Application

Wireless and Wired Broadband Communication
Imaging Systems
Ultrasound
Spectral Analysis
Portable Instrumentation

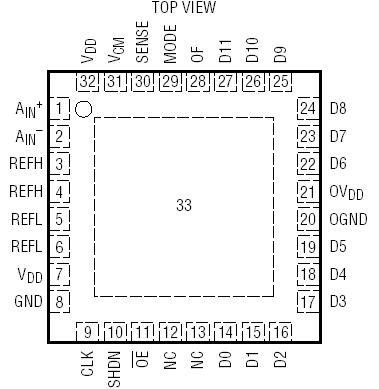

Pinout

Connection Diagram


Specifications

Supply Voltage (VDD) ................................................. 4V
Digital Output Ground Voltage (OGND) ....... 0.3V to 1V
Analog Input Voltage (Note 3) ...  0.3V to (VDD + 0.3V)
Digital Input Voltage ....................0.3V to (VDD + 0.3V)
Digital Output Voltage .............. 0.3V to (OVDD + 0.3V)
Power Dissipation ............................................ 1500mW
Operating Temperature Range
LTC2228C, LTC2227C, LTC2226C...........   0°C to 70°C
LTC2228I, LTC2227I, LTC2226I .......... 40°C to 85°C
Storage Temperature Range .............65°C to 125°C
Lead Temperature (Soldering, 10 sec)...............  300°C


Description

The LTC®2228/LTC2227/LTC2226 are 12-bit 65Msps/40Msps/25Msps, low power 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2228/LTC2227/LTC2226 are perfect for demanding imaging and communications applications with AC performance that includes 71dB SNR and 80dB SFDR for signals well beyond the Nyquist frequency.

DC specs include ±0.3LSB INL (typ), ±0.15LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.25LSBRMS.

A single 3V supply of LTC2228/LTC2227/LTC2226  allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
