Part Number: LX432
Description: Low voltage operation enables the LX432 to be used in the feedback loop of isolated low voltage power ...
- Table of contents:
LX432
-
Suppliers
DataSheet
General Description
LX432 General Description
Low voltage operation enables the LX432 to be used in the feedback loop of isolated low voltage power supplies.
The minimum output voltage is determined by the LX432 output voltage plus the forward voltage drop of the opto-coupler LED (typically 1.24 + 1.4 = 2.64V minimum). See Figure 10. The LX432 is offered in 3 and 5-pin SOT-23 or TO-92 packages, and is a dropin replacement for the TLV431 and SC431L devices.
The LX432 series are low-voltage precision adjustable shunt regulators with a reference voltage of 1.24V. The output voltage may be set to any value between 1.24V and 20V by two external resistors.
These devices offer low output impedance for improved load regulation - typical output impedance is 250mΩ. The LX432 series operates with an operating current as low as 80µA, making these devices suitable for portable and micropower applications.
LX432 Maximum Ratings
Cathode to Anode Voltage (VKA) ................................................................. -0.3V to +20V
Reference Input Current (IREF) .................................................................... -50µA to 10µ
Continuous Cathode Current (IK) ............................................................. -25mA to 25mA
Operating Junction Temperature
Plastic (SC, SE & LP Packages) ............................................................................. 150°
Storage Temperature Range ...................................................................... -65°C to 150°
Lead Temperature ..................................................................................................... 300°
LX432 Features
` Low Voltage Operation: 1.24V Reference
` Initial Voltage Reference Accuracy 1%
` Adjustable Output Voltage From VREF To 20V
` Typical Output Dynamic Impedance Less Than 250m
` Sink Current Capability 80A To 20mA
` Direct Alternative To TLV431
` Initial Voltage Reference Accuracy 1%
` Adjustable Output Voltage From VREF To 20V
` Typical Output Dynamic Impedance Less Than 250m
` Sink Current Capability 80A To 20mA
` Direct Alternative To TLV431
LX432 Typical Application
Low Voltage Adjustable Power Supplies
Instrumentation
Computers
Portable Equipment
Instrumentation
Computers
Portable Equipment
LX432 Connection Diagram
LX432
PDF/DataSheet Download
- Datasheet: LX432
- File Size: 159349 KB
- Manufacturer: MICROSEMI [Microsemi Corporation]
- Click here to Download
- ·LX401
- POLYFET [Polyfet RF Devices]
- SILICON GATE ENHANCEMENT MODE RF POWER LDMOS TRANSISTOR
- 38441 KB
- ·LX432CLP
- MICROSEMI [Microsemi Corporation]
- LOW VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS
- 159349 KB
- ·LX432CSC
- MICROSEMI [Microsemi Corporation]
- LOW VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS
- 159349 KB
- ·LX432CSE
- MICROSEMI [Microsemi Corporation]
- LOW VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS
- 159349 KB
- ·LX432ILP
- MICROSEMI [Microsemi Corporation]
- LOW VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS
- 159349 KB
- ·LX432ISC
- MICROSEMI [Microsemi Corporation]
- LOW VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS
- 159349 KB
- ·LX432ISE
- MICROSEMI [Microsemi Corporation]
- LOW VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS
- 159349 KB
LX432 Relative Products

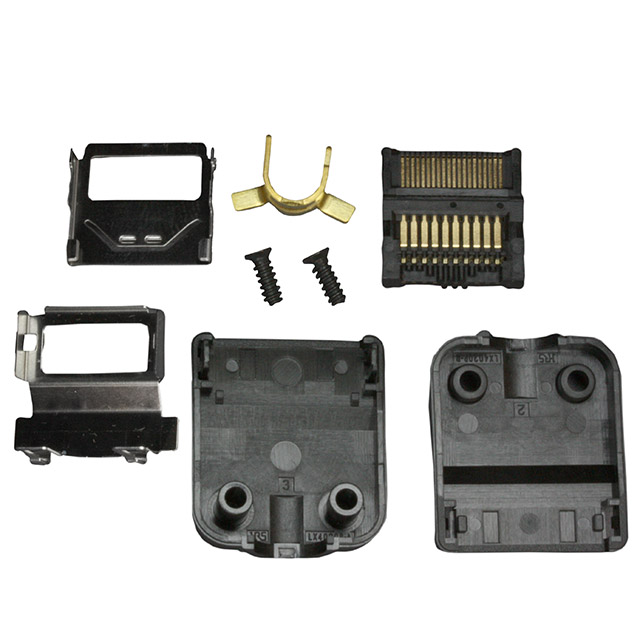

LX40-20P
