Part Number: LX7201-xx
Description: The LX7201 is an integrated Universal Serial Bus (USB) line termination device with an EMI filter and ...
- Table of contents:
LX7201-xx
-
Suppliers
DataSheet
General Description
LX7201-xx General Description
The LX7201 is an integrated Universal Serial Bus (USB) line termination device with an EMI filter and ESD protection diodes. This device offers a cost effective and compact solution for one USB downstream port. The USB specification requires line termination resistors on both the D+ and D- lines. These resistors ensure signal integrity by matching the cable impedance to that of the differential driver. The 15K pull-down resistors identify the line as a downstream connection. The 47 pF capacitor completes the high frequency filter and controls the edge rate of the USB signals. The LX7201 protects both D+ and D- data lines and the voltage bus from ESD.
The TVS protection diodes exceed the requirements of IEC61000-4-2, level 4, 15kV (air discharge) and 8kV (contact discharge). The integrated configuration of the LX7201 minimizes board space and allows for ideal placement near the connector. The LX7201 is ideal for use in USB hubs, peripherals and portable appliances.
LX7201-xx Maximum Ratings
Steady State Power .........................................................................100mW
ESD Air Discharge per IEC61000-4-2....................................................16kV
ESD Contact Discharge per IEC61000-4-2 ............................................ 0kV
Lead Soldering Temperature (10 Seconds).......................................260°C
Operating Temperature .............................................. ..-40°C to +125°C
Storage Temperature Range..........................................-55°C to +150°C
ESD Air Discharge per IEC61000-4-2....................................................16kV
ESD Contact Discharge per IEC61000-4-2 ............................................ 0kV
Lead Soldering Temperature (10 Seconds).......................................260°C
Operating Temperature .............................................. ..-40°C to +125°C
Storage Temperature Range..........................................-55°C to +150°C
LX7201-xx Features
`Bi-directional EMI/RFI Low-Pass Filter
`Line Termination with Integrated ESD Protection
`Low TVS Operating Voltage (5.25V)
`Low Leakage Current
`Integrated Single Die Construction
`Available With 15 or 22 Series Resistance
`Crosses from Semtech STF201
`Line Termination with Integrated ESD Protection
`Low TVS Operating Voltage (5.25V)
`Low Leakage Current
`Integrated Single Die Construction
`Available With 15 or 22 Series Resistance
`Crosses from Semtech STF201
LX7201-xx Typical Application
·USB 1.1 and USB 2.0 Full Speed Compliant
·Peripherals
·Printers
·Monitors
·Servers, Desktops and Notebook Computers
·Digital Cameras
·Peripherals
·Printers
·Monitors
·Servers, Desktops and Notebook Computers
·Digital Cameras

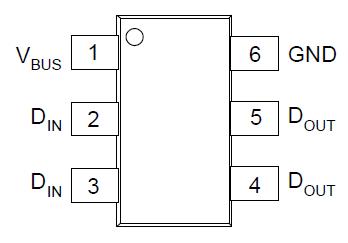

LX7201-xx Connection Diagram
