Part Number: LX7203-xx
Description: The LX7203 is an integrated Universal Serial Bus (USB) line termination device with an EMI filte...
- Table of contents:
LX7203-xx
-
Suppliers
DataSheet
General Description
LX7203-xx General Description
The LX7203 is an integrated Universal Serial Bus (USB) line termination device with an EMI filter and ESD protection diodes. This device offers a cost effective and compact solution for one USB upstream port. The USB v1.1 specification requires line termination resistors on both the D+ and D- lines. These resistors ensure signal integrity by matching the cable impedance to that of the differential driver. The 1.5 k pull-up resistor identifies the appropriate data line for full speed or low speed operation.
The 47 pF capacitor completes the high frequency filter and controls the edge rate of the USB signals The LX7203 protects both D+ and D- data lines and the voltage bus from ESD. The TVS protection diodes exceed the requirements of IEC61000-4-2, level 4, 15kV (air discharge) and 8kV (contact discharge).The integrated configuration of the LX7203 minimizes board space and allows for ideal placement near the connector. The LX7203 is ideal for use in USB hubs, peripherals and portable appliances
LX7203-xx Maximum Ratings
Steady State Power .....................................................100mW
ESD Air Discharge per IEC61000-4-2................................16kV
ESD Contact Discharge per IEC61000-4-2........................10kV
Lead Soldering Temperature (10 Seconds) .................... 260
Operating Temperature ...................................-40 to +125
Storage Temperature Range ............................-55 to +150
Note: Exceeding these ratings could cause damage to the device. All voltages are with respect to Ground. Currents are positive into, negative out of specified terminal.
LX7203-xx Features
·Small SC70-6L Package
·Bi-directional EMI/RFI low-pass filter
·Line termination with integrated ESD protection
·Low TVS operating voltage (5.25V)
·Low leakage current
·Integrated single die construction
·Crosses From Semtech STF203
·Bi-directional EMI/RFI low-pass filter
·Line termination with integrated ESD protection
·Low TVS operating voltage (5.25V)
·Low leakage current
·Integrated single die construction
·Crosses From Semtech STF203
LX7203-xx Typical Application
`USB Ports
`Peripherals
`Computers and Printers
`Mobile phones
`Pagers and PDA's
`Digital Cameras
`Peripherals
`Computers and Printers
`Mobile phones
`Pagers and PDA's
`Digital Cameras

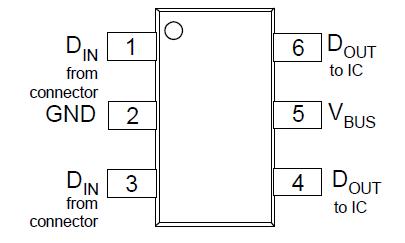

LX7203-xx Connection Diagram
LX7203-XX
