Part Number: LXT914



MFG: LEVEIONE

Package Cooled: PLCC

D/C: 05/06+



Urgent Purchase

LXT914 Maximum Ratings

Parameter Symbol Min Typ Max Units
Supply voltage VCC -0.3 - 6 V
Operating temperature LXT914PC/QC TOP 0 - +70 ° C
LXT914PE TOP -40 - +85 ° C
Storage temperature TST -65 - +150 ° C

Caution: Exceeding these values may cause permanent damage. Functional operation under these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

LXT914 Features

` Four integrated 10BASE-T transceivers and one AUI transceiver on a single chip
` Programmable DTE/MAU interface on AUI port
` Seven integrated LED drivers with four unique operational modes
` On-chip transmit and receive filtering
` Automatic partitioning of faulty ports, enabled on an individual port basis
` Automatic polarity detection and correction
` Programmable squelch level allows extended range in low-noise environments
` Synchronous or asynchronous interrepeater backplane supports "hot swapping"
` Inter-repeater backplane allows cascaded repeaters, linking 128 or more 10BASE-T ports
` Serial port for selecting programmable options
` 68-pin PLCC (Commercial or Extended temp range)
` 100-pin PQFP (Commercial temp range)

LXT914 Typical Application

· LAN Repeaters
· Integrated Repeaters
· Switched Repeater Clusters

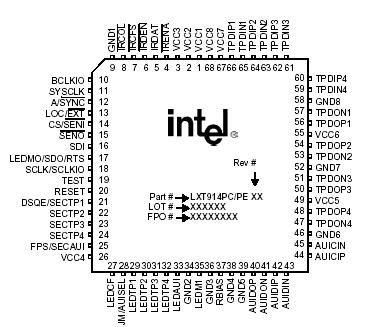

LXT914 Connection Diagram

LXT914 Connection Diagram

LXT914 datasheet

LXT914
