Part Number: LY62256
Description: The LY62256 is a 262,144-bit low power CMOS static random access memory organized as 32,768 words by 8...
- Table of contents:
LY62256
-
Suppliers
DataSheet
General Description
LY62256 General Description
The LY62256 is a 262,144-bit low power CMOS static random access memory organized as 32,768 words by 8 bits. It is fabricated using very high performance, high reliability CMOS technology. Its standby current is stable within the range of operating temperature.
The LY62256 is well designed for low power application, and particularly well suited for battery back-up nonvolatile memory application.
The LY62256 operates from a single power supply of 5V and all inputs and outputs are fully TTL compatible
LY62256 Maximum Ratings
| PARAMETER | SYMBOL | RATING | UNIT |
| Terminal Voltage with Respect to VSS | VTERM | -0.5 to 7.0 | V |
| Operating Temperature | TA | 0 to 70(C grade) | |
| -20 to 80(E grade) | |||
| -40 to 85(I grade) | |||
| Storage Temperature | TSTG | -65 to 150 | |
| Power Dissipation | PD | 1 | W |
| DC Output Current | IOUT | 50 | mA |
| Soldering Temperature (under 10 sec) | TSOLDER | 260 |
LY62256 Features
` Fast access time : 35/55/70ns
` Low power consumption: Operating current : 40/35/30mA (TYP.) Standby current : 2A (TYP.) L-version 1A (TYP.) LL-version
` Single 5V power supply
` All inputs and outputs TTL compatible
` Fully static operation
` Tri-state output
` Data retention voltage : 2.0V (MIN.)
` Package : 28-pin 600 mil PDIP 28-pin 330 mil SOP 28-pin 8mm x 13.4mm STSOP
` Low power consumption: Operating current : 40/35/30mA (TYP.) Standby current : 2A (TYP.) L-version 1A (TYP.) LL-version
` Single 5V power supply
` All inputs and outputs TTL compatible
` Fully static operation
` Tri-state output
` Data retention voltage : 2.0V (MIN.)
` Package : 28-pin 600 mil PDIP 28-pin 330 mil SOP 28-pin 8mm x 13.4mm STSOP

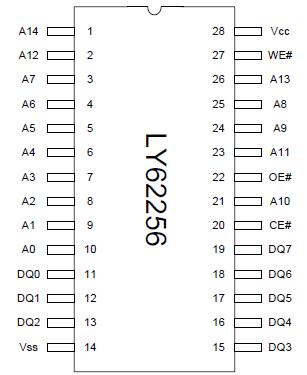

LY62256 Connection Diagram
LY62256
