Purchase LZY-1, In-stock LZY-1 From SeekIC.
MFG:MINI Package Cooled:N/A D/C:N/A
Part Number: LZY-1
MFG: MINI
Package Cooled: N/A
D/C: N/A
Description: Features• saturated power 50W typ.• high power with low distortion, -32 dBc typ.•...
- Table of contents:
LZY-1
-
Suppliers
DataSheet
General Description
LZY-1 General Description
Features
• saturated power 50W typ.
• high power with low distortion, -32 dBc typ.
• wide bandwidth, usable 10 - 525 MHz
• high gain, 42 dB typ.
• unconditionally stable
• self protected against excessive drive, high case temp., reverse
polarity and shorting/unshorting transients at dc input
• electronic shutoff by grounding the shut-off terminal, reduces output by 50 dB
open circuiting terminal restores full power within 40 ms
• cool operation with integral fan, 15° C typ. rise
• graceful degradation, +20 to +30V DC
• can withstand short and open circuit at output for 2 minutes while delivering 20 watts
LZY-1 Maximum Ratings
LZY-1 Features

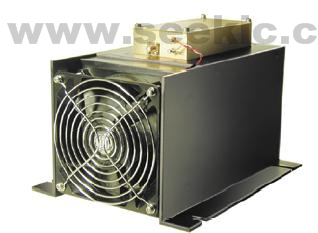

LZY-1 Connection Diagram
