Part Number: M2006-12A
Description: The M2006-12A is a VCSO (Voltage Controlled SAW Oscillator) based clock generator PLL designed for clo...
- Table of contents:
M2006-12A
-
Suppliers
DataSheet
General Description
M2006-12A General Description
The M2006-12A is a VCSO (Voltage Controlled SAW Oscillator) based clock generator PLL designed for clock frequency translation and jitter attenuation. Clock multiplication ratios (including forward and inverse FEC) are pin-selected from pre-programming look-up tables. Includes Hitless Switching and Phase Build-out to enable SONET (GR-253) / SDH (G.813) MTIE and TDEV compliance during reference clock reselection. Hitless Switching (HS) engages when a 4ns or greater clock phase change is detected.
M2006-12A Maximum Ratings
|
Symbol |
Parameter |
Rating |
Unit |
| VI | Inputs |
-0.5 to VCC +0.5 |
V |
| VO | Outputs |
-0.5 to VCC +0.5 |
V |
| VCC | Power Supply Voltage |
4.6 |
V |
| TS | Storage Temperature |
-45 to +100 |
Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond those listed in Recommended Conditions of Operation, DC Characteristics, or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
M2006-12A Features
· Reduced intrinsic output jitter and improved power supply noise rejection compared to M2006-12
· Similar to the M2006-02A - and pin-compatible - but adds Hitless Switching and Phase Build-out functions
· Includes APC pin for Phase Build-out function (for absorption of the input phase change)
· Pin-selectable PLL divider ratios support forward and inverse FEC ratio translation
· Input reference and VCSO frequencies up to 700MHz (Specify VCSO frequency at time of order)
· Low phase jitter of 0.25 ps rms typical (12kHz to 20MHz or 50kHz to 80MHz)
· Commercial and Industrial temperature grades
· Single 3.3V power supply
· Small 9 x 9 mm SMT (surface mount) package
· Similar to the M2006-02A - and pin-compatible - but adds Hitless Switching and Phase Build-out functions
· Includes APC pin for Phase Build-out function (for absorption of the input phase change)
· Pin-selectable PLL divider ratios support forward and inverse FEC ratio translation
· Input reference and VCSO frequencies up to 700MHz (Specify VCSO frequency at time of order)
· Low phase jitter of 0.25 ps rms typical (12kHz to 20MHz or 50kHz to 80MHz)
· Commercial and Industrial temperature grades
· Single 3.3V power supply
· Small 9 x 9 mm SMT (surface mount) package

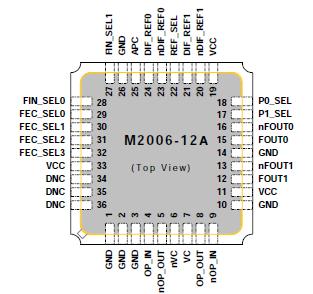

M2006-12A Connection Diagram
M2006-12A
