M25P32

Features: 32Mbit of Flash MemoryPage Program (up to 256 Bytes) in 1.4ms (typical)Sector Erase (512Kbit)Bulk Erase (32Mbit)2.7 to 3.6V Single Supply VoltageSPI Bus Compatible Serial Interface50MHz Clock Rate (maximum)Deep Power-down Mode 1µA (typical)Electronic Signatures JEDEC Standard Two-B...

product image

M25P32 Picture
See larger image
SeekIC No. : 004404185 Detail

M25P32: Features: 32Mbit of Flash MemoryPage Program (up to 256 Bytes) in 1.4ms (typical)Sector Erase (512Kbit)Bulk Erase (32Mbit)2.7 to 3.6V Single Supply VoltageSPI Bus Compatible Serial Interface50MHz Cl...

M25P32 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M25P32
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

32Mbit of Flash Memory
Page Program (up to 256 Bytes) in 1.4ms (typical)
Sector Erase (512Kbit)
Bulk Erase (32Mbit)
2.7 to 3.6V Single Supply Voltage
SPI Bus Compatible Serial Interface
50MHz Clock Rate (maximum)
Deep Power-down Mode 1µA (typical)
Electronic Signatures
   JEDEC Standard Two-Byte Signature (2016h)
   RES Instruction, One-Byte, Signature (15h), for backward compatibility
More than 100,000 Erase/Program Cycles per Sector
More than 20 Year Data Retention


Pinout

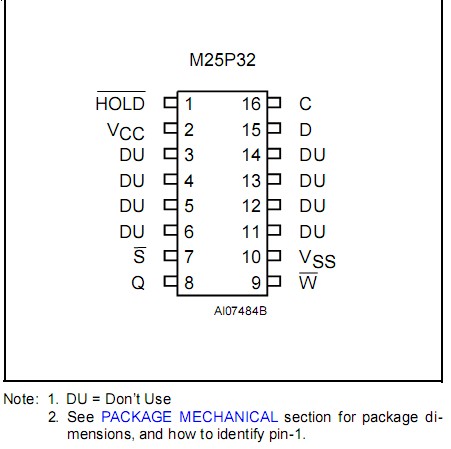

Connection Diagram




Specifications

Symbol
Parameter
Min.
Max.
Unit
TSTG
Storage Temperature
65
150
°C
TLEAD
Lead Temperature during Soldering
See note(1)
°C
VIO
Input and Output Voltage (with respect to Ground)
0.6
4.0
V
VCC
Supply Voltage
0.6
4.0
V
VESD
Electrostatic Discharge Voltage (Human Body model) 2
2000
2000
V

Note:
1.Compliant with JEDEC Std J-STD-020C (for small body, Sn-Pb or Pb assembly), the ST ECOPACK ®7191395 specification, and the European directive on Restrictions on Hazardous Substances (RoHS) 2002/95/EU
2.JEDEC Std JESD22-A114A (C1=100pF, R1=1500 Ω, R2=500 Ω)




Description

The M25P32 is a 32Mbit (4M x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus.

The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.

The memory is organized as 64 sectors, each containing 256 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 16384 pages, or 4,194,304 bytes.

The whole memory M25P32 can be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction.
