Purchase M27C4002, In-stock M27C4002 From SeekIC.
MFG:STM D/C:01+
Part Number: M27C4002
MFG: STM
D/C: 01+
Description: The M27C4002 is a 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time pro...
- Table of contents:
M27C4002
-
Suppliers
DataSheet
General Description
M27C4002 General Description
The M27C4002 is a 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for micro- processor systems requiring large programs and is organised as 262,144 words of 16 bits.
The FDIP40W (window ceramic frit-seal package) and the JLCC44W (J-lead chip carrier packages) have transparent lids which allow the user to ex- pose the chip to ultraviolet light to erase the bit pat- tern. A new pattern can then be written to the device by following the programming procedure.For applications where the content is programmed only one time and erasure is not required, the M27C4002 is offered in PDIP40, PLCC44 and TSOP40 (10 x 20 mm) packages.
M27C4002 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| T A | Ambient Operating Temperature (3) | -40 to 125 | °C |
| T BIAS | TemperatureUnderBias | 50 to 125 | °C |
| T STG | StorageTemperature | 65 to 150 | °C |
| V IO (2) | InputorOutputVoltages(exceptA9) | 2to 7 | °C |
| V CC | Supply Voltage | 2 to7 | V |
| VAG | A9 Voltage | 2 to 13.5 | V |
| V PP | Identification Voltage | 2 to 14 | V |
M27C4002 Features
5V ± 10% SUPPLY VOLTAGE in READ OPERATION
ACCESS TIME: 45ns
LOW POWER CONSUMPTION:
Active Current 70mA at 10MHz
Standby Current 100µA
PROGRAMMING VOLTAGE: 12.75V ± 0.25V
PROGRAMMING TIME: 100µs/word
ELECTRONIC SIGNATURE
Manufacturer Code: 20h
Device Code: 44h
ACCESS TIME: 45ns
LOW POWER CONSUMPTION:
Active Current 70mA at 10MHz
Standby Current 100µA
PROGRAMMING VOLTAGE: 12.75V ± 0.25V
PROGRAMMING TIME: 100µs/word
ELECTRONIC SIGNATURE
Manufacturer Code: 20h
Device Code: 44h

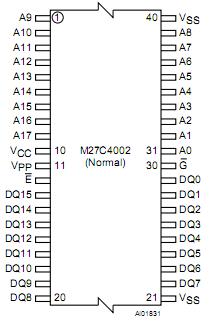

M27C4002 Connection Diagram
M27C4002
PDF/DataSheet Download
- Datasheet: M27C4002
- File Size: 115676 KB
- Manufacturer: STMicro
- Click here to Download
- ·M27128A
- INTEL [Intel Corporation]
- AVDVANCED 64K (8K x 8) UV ERASABLE PROM
- 109999 KB
- ·M27128A-1F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 16K 2K x 8 UV EPROM
- 93967 KB
- ·M27128A-1F6
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 16K 2K x 8 UV EPROM
- 93967 KB
- ·M27128A-20F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-20F6
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-25F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-25F6
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-2F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
M27C4002 Relative Products
M27C4001-90F1
The M27C4001-90F1 is designed as one kind of 4 Mbit (512Kb x8) UV EPROM and OTP EPROM device that belongs to the M27C4001 family. This device can be used in where the content is programmed only one time and erasure is not required, and it is ideally suited f...
M27C400190C6
The M27C400190C6 belongs to M27C4001 family which is a 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). A new pattern can then be written to the device by following the programming procedure. For applications wh...

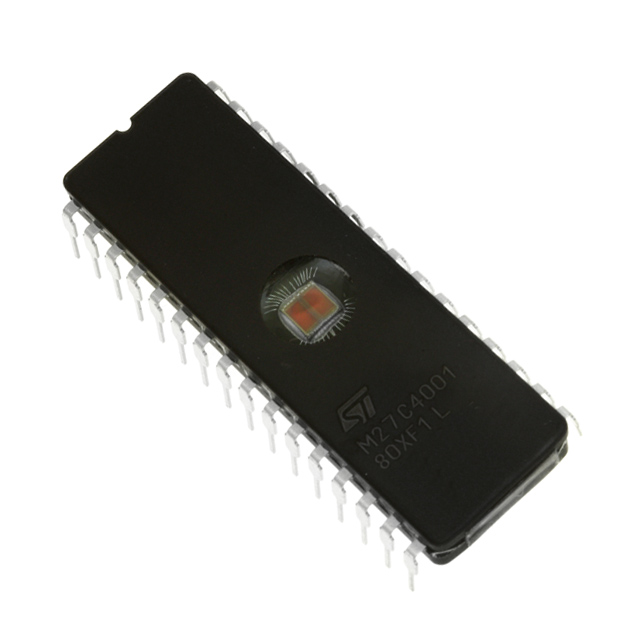

M27C4001-80XF1
