M27C512-70XF1

Maximum Operating Temperature : + 70 C
Mounting Style : Through Hole
Interface Type : Parallel
Operating Supply Voltage : 5 V
Memory Size : 512 Kb
Type : OTP, UV
Operating Current : 50 mA
Programming Voltage : 12.75 V
Organization : 64 Kbit x 8
Package / Case : CDIP-28


Pinout




Description

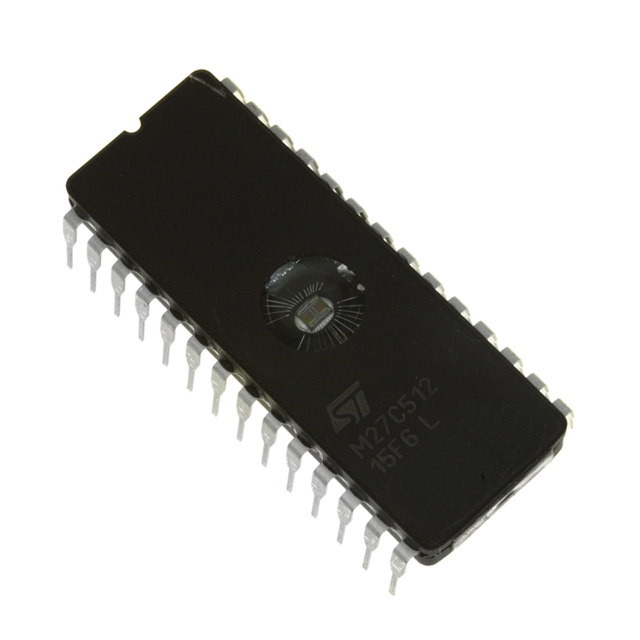

The M27C512-70XF1 is a kind of 512 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is organized as 65536 by 8 bits. The device is designed for applications where fast turn-around and pattern experimentation are important requirements. It is available in FDIP28W (window ceramic frit-seal package).

There are some features M27C512-70XF1 as follows. (1) 5 V±10% supply voltage in READ; (2) acess time: 45 ns; (3) low power "CMOS" consumption: active current 30 mA and standby current 100 A; (4) programming voltage: 12.75 V±0.25 V; (5) programming times of AROUND 6 sec; (6) electronic signature: manufacture code 20 h and device 3 Dh; (7) the package is lead-free version.

The following is about the absolute maximum ratings M27C512-70XF1. (1): VIO input or output voltage (except A9) is from -2 to +7.0 V; (2): VCC (supply voltage) is from -2 to +7.0 V; (3): VA9 (A9 voltage) is from -2 to +13.5 V; (4): VPP (program supply voltage) is from -2 to +14.0 V;  (5) TSTG (storage temperature) is from -65 to +150; (6) TA (ambient operating temperature) is from -40 to +125; (7) TBIAS (temperature under bias) is from -50 to +125.

Parameters:

Technical/Catalog Information	M27C512-70XF1
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Memory Type	UV EPROM
Memory Size	512K (64K x 8)
Speed	70ns
Interface	Parallel
Package / Case	28-CDIP (600 mil) Window Frit Seal
Packaging	Tube
Voltage - Supply	4.75 V ~ 5.25 V
Operating Temperature	0°C ~ 70°C
Format - Memory	EPROMs
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	M27C512 70XF1 M27C51270XF1 497 1679 5 ND 49716795ND 497-1679-5
