General Description
M27W256 General Description
The M27W256 is a low voltage 1 Mbit EPROM of-fered in two range UV (ultravioleterase) and OTP (onetimeprogrammable). It is ideally suited for mi-croprocessor systems requiring large data or pro-gram storage and is organized as 131,072 by 8 bits.
The M27W256 operates in the read mode with a supply voltage as low as 2.7V at40 to 85°C tem-perature range.
The decrease in operating powe allows either a reduction of the size of the battery or an increase in the time between battery recharges.
The FDIP28W (window ceramic frit-seal package) has a transparent lid which allows the user toex-pose the chip to ultraviolet light to erase the bit pat-tern.A new pattern can then be written to the device by following the programming procedure.For application where the content is programmed only one time and erasure is not required,the M27W256 is offered in PDIP28,PLCC32and TSOP28 (8x13.4mm) packages.
M27W256 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| TA | AmbientOperatingTemperature(3) | 40 to 125 | °C |
| TBIAS | TemperatureUnderBias | 50 to 125 | °C |
| TSTG | StorageTemperature | 65 to 150 | °C |
| VIO(2) | InputorOutputVoltage(exceptA9) | 2 to 7 | V |
| VCC | SupplyVoltage | 2 to 7 | V |
| VA9(2) | A9Voltage | 2 to 13.5 | V |
| VPP | ProgramSupplyVoltage | 2 to 14 | V |
M27W256 Features
2.7V to 3.6V LOW VOLTAGE in READ OPERATION
ACCESS TIME:
70ns at VCC=3.0V to 3.6V
80ns at VCC=2.7V to 3.6V
PIN COMPATIBLE with M27C1001
LOW POWER CONSUMPTION:
ActiveCurrent15mAat5MHz
StandbyCurrent15µA
PROGRAMMING TIME 100µs/byte
HIGH RELIABILITY CMOS TECHNOLOGY
2,000V ESD Protection
200mA Latchup Protection Immunity
ELECTRONIC SIGNATURE
ManufacturerCode:20h
DeviceCode:3Dh
ACCESS TIME:
70ns at VCC=3.0V to 3.6V
80ns at VCC=2.7V to 3.6V
PIN COMPATIBLE with M27C1001
LOW POWER CONSUMPTION:
ActiveCurrent15mAat5MHz
StandbyCurrent15µA
PROGRAMMING TIME 100µs/byte
HIGH RELIABILITY CMOS TECHNOLOGY
2,000V ESD Protection
200mA Latchup Protection Immunity
ELECTRONIC SIGNATURE
ManufacturerCode:20h
DeviceCode:3Dh

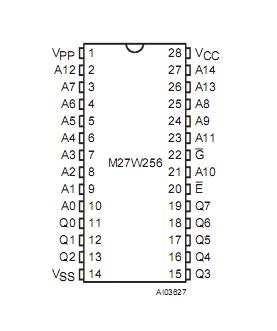

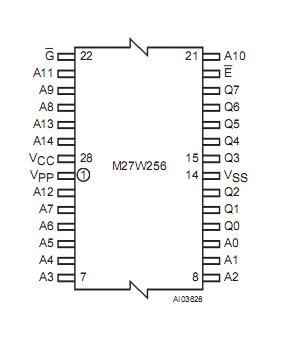

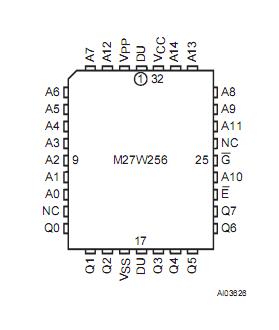

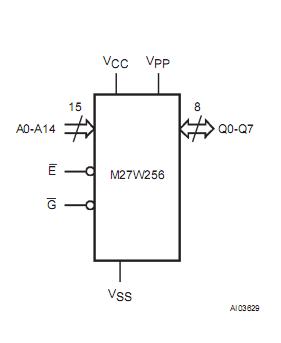

M27W256 Connection Diagram
M27W256
PDF/DataSheet Download
- Datasheet: M27W256
- File Size: 103820 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
- ·M27128A
- INTEL [Intel Corporation]
- AVDVANCED 64K (8K x 8) UV ERASABLE PROM
- 109999 KB
- ·M27128A-1F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 16K 2K x 8 UV EPROM
- 93967 KB
- ·M27128A-1F6
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 16K 2K x 8 UV EPROM
- 93967 KB
- ·M27128A-20F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-20F6
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-25F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-25F6
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-2F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
