Purchase M27W402, In-stock M27W402 From SeekIC.
Part Number: M27W402
Description: The M27W402 is a low voltage 4 Mbit EPROM offered in the two range UV (Ultra Violet Erase) and OTP (on...
- Table of contents:
M27W402
-
Suppliers
DataSheet
General Description
M27W402 General Description
The M27W402 is a low voltage 4 Mbit EPROM offered in the two range UV (Ultra Violet Erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage and is organised as 262,144 by 16 bits.
The M27W402 operates in the read mode with a supply voltage as low as 2.7V at 40 to 85°C temperature range. The decrease in operating power allows either a reduction of the size of the battery or an increase in the time between battery recharges.
The FDIP40W (window ceramic frit-seal package) has a transparent lids which allow the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
For applications where the content is programmed only one time and erasure is not required, the M27W402 is offered in PDIP40, PLCC44 and TSOP40 (10 x 20 mm) packages.
M27W402 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
TA |
Ambient Operating Temperature (3) |
40 to 85 |
°C |
|
TBIAS |
Temperature Under Bias |
50 to 125 |
°C |
|
TSTG |
Storage Temperature |
65 to 150 |
°C |
|
VIO(2) |
Input or Output Voltage (except A9) |
2 to 7 |
V |
|
VCC |
Supply Voltage |
2to 7 |
V |
|
VA9(2) |
A9 Voltage |
2 to 13.5 |
V |
|
VPP |
Program Supply Voltage |
2 to 14 |
V |

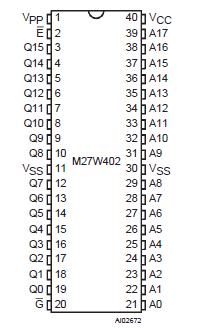

M27W402 Connection Diagram
M27W402
PDF/DataSheet Download
- Datasheet: M27W402
- File Size: 106353 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
