Part Number: M28C17



MFG: STM



D/C: 01+

Description: The M28C17 is a 2K x 8 low power Parallel EEPROM fabricated with SGS-THOMSON proprietary single polysi...


Urgent Purchase

M28C17 General Description


The M28C17 is a 2K x 8 low power Parallel EEPROM fabricated with SGS-THOMSON proprietary single polysilicon CMOS technology. The device offers fast access time with low power dissipation and requires a 5V power supply.

The M28C17 offers the same features than the M28C16, in addition to the Ready/Busy pin.

The circuit has been designed to offer a flexible microcontroller interface featuring both hardware

M28C17 Maximum Ratings

Symbol
Parameter
       Value
Unit
TA
 Ambient Operating Temperature
40 to 125
°C
TSTG
 Storage Temperature Range
65 to 150
°C
VCC
 Supply Voltage
0.6 to 6.5
V
VIO
 Input or Output Voltages
0.3 to VCC +0.6
V
VI
 Input Voltage
0.3 to 6.5
V
VESD
 Electrostatic Discharge Voltage (Human Body model) (2)
4000
V

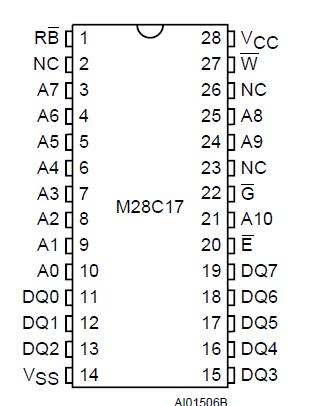

M28C17 Connection Diagram

M28C17 Connection Diagram
