M2901V
-
Suppliers
DataSheet
General Description
M2901V Maximum Ratings
|
Rating |
Rating Symbol |
Value |
Unit |
|
Power Supply Voltage LM239, A/LM339A/LM2901, V MC3302 |
VCC |
+36 or ±18 +30 or ±15 |
Vdc |
|
Input Differential Voltage Range LM239, A/LM339A/LM2901, V MC3302 |
VIDR |
36 30 |
Vdc |
|
Input Common Mode Voltage Range |
VICMR |
0.3 to VCC |
Vdc |
|
Output Short Circuit to Ground (Note 1) |
ISC |
Continuous |
|
|
Power Dissipation @ TA = 25°C Plastic Package Derate above 25°C |
PD |
1.0 8.0 |
W mW/ |
|
Junction Temperature |
TJ |
150 |
|
|
Operating Ambient Temperature Range LM239, A MC3302 LM2901 LM2901V LM339, A |
TA |
25 to +85 40 to +85 40 to +105 40 to +125 0 to +70 |
|
|
Storage Temperature Range |
Tstg | 65 to +150 |
M2901V Typical Application
• Single or Split Supply Operation
• Low Input Bias Current: 25 nA (Typ)
• Low Input Offset Current: ±5.0 nA (Typ)
• Low Input Offset Voltage: ±1.0 mV (Typ) LM139A Series
• Input Common Mode Voltage Range to Gnd
• Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA
• TTL and CMOS Compatible
• ESD Clamps on the Inputs Increase Reliability without Affecting
• Low Input Bias Current: 25 nA (Typ)
• Low Input Offset Current: ±5.0 nA (Typ)
• Low Input Offset Voltage: ±1.0 mV (Typ) LM139A Series
• Input Common Mode Voltage Range to Gnd
• Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA
• TTL and CMOS Compatible
• ESD Clamps on the Inputs Increase Reliability without Affecting

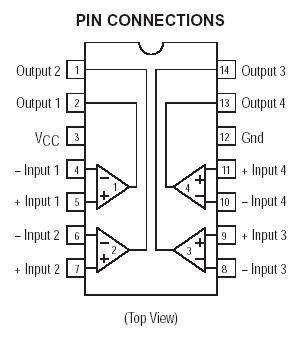

M2901V Connection Diagram
