M29F016B

Features: SINGLE 5V±10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONSACCESS TIME: 55nsPROGRAMMING TIME 8ms by Byte typical32 UNIFORM 64 Kbyte MEMORY BLOCKSPROGRAM/ERASE CONTROLLER Embedded Byte Program algorithm Embedded Multi-Block/Chip Erase algorithm Status Register Polling and Togg...

product image

M29F016B Picture
See larger image
SeekIC No. : 004404362 Detail

M29F016B: Features: SINGLE 5V±10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONSACCESS TIME: 55nsPROGRAMMING TIME 8ms by Byte typical32 UNIFORM 64 Kbyte MEMORY BLOCKSPROGRAM/ERASE CONTROLLER Embedded...

M29F016B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M29F016B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

SINGLE 5V±10% SUPPLY VOLTAGE for
   PROGRAM, ERASE and READ OPERATIONS
ACCESS TIME: 55ns
PROGRAMMING TIME
   8ms by Byte typical
32 UNIFORM 64 Kbyte MEMORY BLOCKS
PROGRAM/ERASE CONTROLLER
   Embedded Byte Program algorithm
   Embedded Multi-Block/Chip Erase algorithm
   Status Register Polling and Toggle Bits
    Ready/Busy Output Pin
ERASE SUSPEND and RESUME MODES
    Read and Program another Block during
Erase Suspend
TEMPORARY BLOCK UNPROTECTION
   MODE
UNLOCK BYPASS PROGRAM COMMAND
   Faster Production/Batch Programming
LOW POWER CONSUMPTION
   Standby and Automatic Standby
100,000 PROGRAM/ERASE CYCLES per
   BLOCK
20 YEARS DATA RETENTION
   Defectivity below 1 ppm/year
ELECTRONIC SIGNATURE
   Manufacturer Code: 20h
   Device Code: ADh


Pinout

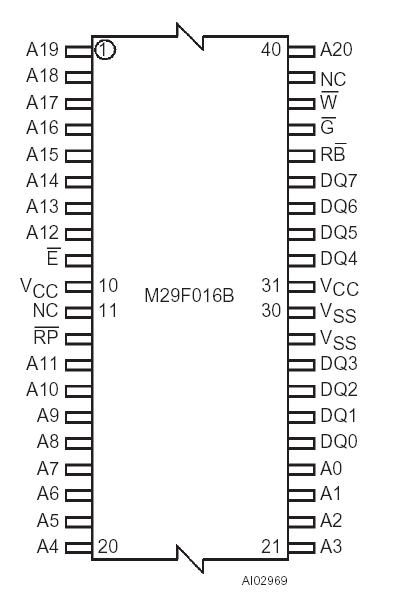

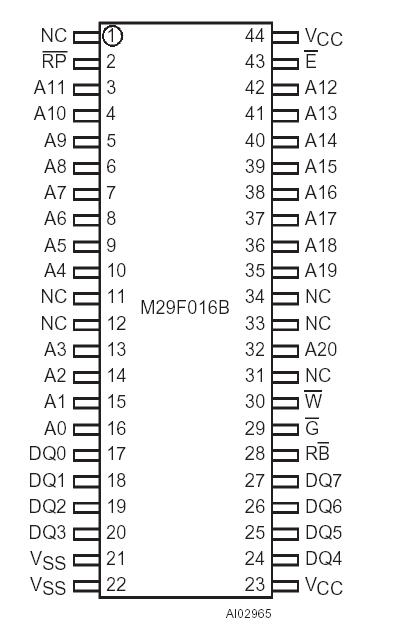

Connection Diagram Connection Diagram


Specifications

Symbol Parameter Value Unit
TA Ambient Operating Temperature (Temperature Range Option 1) 0 to 70
Ambient Operating Temperature (Temperature Range Option 6) 40 to 85
Ambient Operating Temperature (Temperature Range Option 3) 40 to 125
TBIAS Temperature Under Bias 50 to 125
TSTG Storage Temperature 65 to 150
VIO(2) Input or Output Voltage 0.6 to 6 V
VCC Supply Voltage 0.6 to 6 V
VID Identification Voltage 0.6 to 13.5 V
