Purchase M29F040, In-stock M29F040 From SeekIC.
Package Cooled:PLCC
Part Number: M29F040
Package Cooled: PLCC
Description: The M29F040 is a non-volatile memory that may be erased electrically at the block level, and pro-grammed Byte-by-Byt...
- Table of contents:
M29F040
-
Suppliers
DataSheet
General Description
M29F040 General Description
The M29F040 is a non-volatile memory that may be erased electrically at the block level, and pro-grammed Byte-by-Byte.
The interface is directly compatible with most mi-croprocessors. PLCC32 and TSOP32 (8 x 20mm) packages are available. Both normal and reverse pin outs are available for the TSOP32 package.
M29F040 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| TA | Ambient Operating Temperature (3) | 40 to 125 | °C |
| TBIAS | Temperature Under Bias | 50 to 125 | °C |
| TSTG | Storage Temperature | 65 to 150 | °C |
| VIO(2) | Inputor Output Voltage | 0.6 to 7 | V |
| VCC | Supply Voltage | 0.6 to 7 | V |
| VA9(2) | A9 Voltage | 0.6 to 13.5 | V |

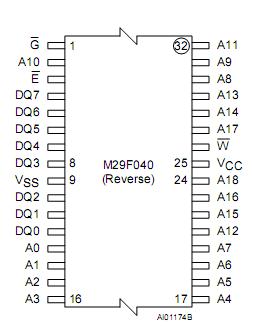

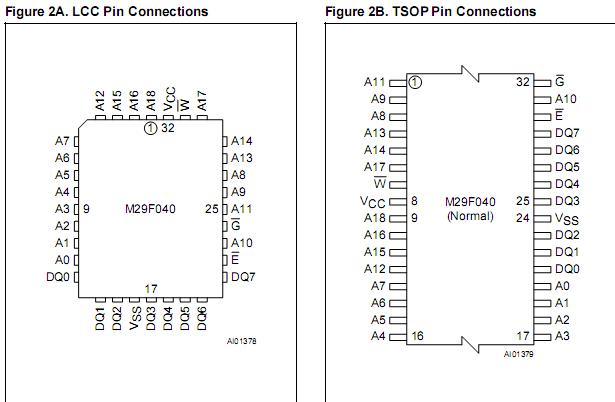

M29F040 Connection Diagram
M29F040
PDF/DataSheet Download
- Datasheet: M29F040
- File Size: 238047 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
