Purchase M29F102BB, In-stock M29F102BB From SeekIC.
MFG:ST Package Cooled:PLCC
- Table of contents:
M29F102BB
-
Suppliers
DataSheet
General Description
M29F102BB Maximum Ratings
| Symbol | Parameter | Value | Unit |
| TA | Ambient Operating Temperature | 0 to 70 | °C |
| TBIAS | Temperature Under Bias | 50 to 125 | °C |
| TSTG | Storage Temperature | 65 to 150 | °C |
| TLEAD | Lead Temperature during Soldering | (3) | |
| VIO(2) | Input or Output Voltage | 0.6 to 6 | V |
| VCC | Supply Voltage | 0.6 to 6 | V |
| VID | Identification Voltage | 0.6 to 13.5 | V |
M29F102BB Features
SINGLE 5V±10% SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS
ACCESS TIME: 35ns
PROGRAMMING TIME
8µs per Word typical
5 MEMORY BLOCKS
1 Boot Block (Bottom Location)
2 Parameter and 2 Main Blocks
PROGRAM/ERASE CONTROLLER
Embedded Word Program algorithm
Embedded Multi-Block/Chip Erase algorithm
Status Register Polling and Toggle Bits
ERASE SUSPEND and RESUME MODES
Read and Program another Block during Erase Suspend
UNLOCK BYPASS PROGRAM COMMAND
Faster Production/Batch Programming
TEMPORARY BLOCK UNPROTECTION MODE
LOW POWER CONSUMPTION
Standby and Automatic Standby
100,000 PROGRAM/ERASE CYCLES per BLOCK
M28F102 COMPATIBLE
Pin-out and Read Mode
20 YEARS DATA RETENTION
Defectivity below 1 ppm/year
ELECTRONIC SIGNATURE
Manufacturer Code: 0020h
Bottom Device Code M29F102BB: 0097h
PACKAGES
Compliant with Lead-Free Soldering Processes
Lead-Free Versions
ACCESS TIME: 35ns
PROGRAMMING TIME
8µs per Word typical
5 MEMORY BLOCKS
1 Boot Block (Bottom Location)
2 Parameter and 2 Main Blocks
PROGRAM/ERASE CONTROLLER
Embedded Word Program algorithm
Embedded Multi-Block/Chip Erase algorithm
Status Register Polling and Toggle Bits
ERASE SUSPEND and RESUME MODES
Read and Program another Block during Erase Suspend
UNLOCK BYPASS PROGRAM COMMAND
Faster Production/Batch Programming
TEMPORARY BLOCK UNPROTECTION MODE
LOW POWER CONSUMPTION
Standby and Automatic Standby
100,000 PROGRAM/ERASE CYCLES per BLOCK
M28F102 COMPATIBLE
Pin-out and Read Mode
20 YEARS DATA RETENTION
Defectivity below 1 ppm/year
ELECTRONIC SIGNATURE
Manufacturer Code: 0020h
Bottom Device Code M29F102BB: 0097h
PACKAGES
Compliant with Lead-Free Soldering Processes
Lead-Free Versions

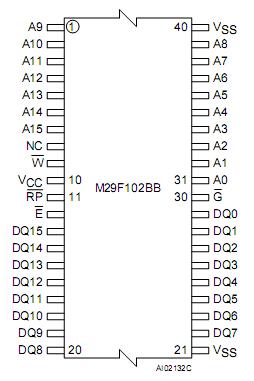

M29F102BB Connection Diagram
M29F102BB
PDF/DataSheet Download
- Datasheet: M29F102BB
- File Size: 129740 KB
- Manufacturer: STMicro
- Click here to Download
