Part Number: M29F400BT



MFG: 11000

Package Cooled: ST



Description: The M29F400B is a 4 Mbit (512Kb x8 or 256Kbx16) non-volatile memory that can be read, erased and reprogrammed. These op...


Urgent Purchase

M29F400BT General Description


The M29F400B is a 4 Mbit (512Kb x8 or 256Kbx16) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single 5V supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The M29F400B is fully backward compatible with the M29F400.

The memory is divided into blocks that can be erased independently so it is possible to preserve valid data while old data is erased. Each block can be protected independently to prevent accidental Program or Erase commands from modifying the memory. Program and Erase commands are written to the Command Interface of the memory. An on chip Program/Erase Controller simplifies the process of programming or erasing the memory by taking care of all of the special operations that are required to update the memory contents. The end of a program or erase operation can be detected and any error conditions identified. The command set required to control the memory is consistent with JEDEC standards.

M29F400BT Maximum Ratings

Symbol Parameter Value Unit
TA Ambient Operating Temperature (Temperature Range Option 1) 0 to 70 °C
Ambient Operating Temperature (Temperature Range Option 6) 40 to 85 °C
Ambient Operating Temperature (Temperature Range Option 3) 40 to 125 °C
TBIAS Temperature Under Bias 50 to 125 °C
TSTG Storage Temperature 65 to 150 °C
VIO (2) Input or Output Voltage 0.6 to 6 V
VCC Supply Voltage 0.6 to 6 V
VID Identification Voltage 0.6 to 13.5 V

M29F400BT Connection Diagram

M29F400BT Connection Diagram

M29F400BT datasheet

M29F400BT
PDF/DataSheet Download

Find M29F400BT Suppliers

  • ·M2901V
  •
  • ORDERING INFORMATION
  • 149016 KB
  • M2901V Datasheet Download
  • ·M2907A
  • ETC [ETC]
  • Mini size of Discrete semiconductor elements
  • 512569 KB
  • M2907A Datasheet Download
  • ·M293
  • STMICROELECTRONICS [STMicroelectronics]
  • EPM 32 ELECTRONIC PROGRAM MEMORY FOR 32 STATIONS
  • 2159674 KB
  • M293 Datasheet Download
  • ·M293B1
  • STMICROELECTRONICS [STMicroelectronics]
  • EPM 32 ELECTRONIC PROGRAM MEMORY FOR 32 STATIONS
  • 2159674 KB
  • M293B1 Datasheet Download
  • ·M295V002B-120K1TR
  • STMICROELECTRONICS [STMicroelectronics]
  • 2 Mbit 256Kb x8, Boot Block Single Supply Flash Memory
  • 200998 KB
  • M295V002B-120K1TR Datasheet Download
  • ·M295V002B-120K6TR
  • STMICROELECTRONICS [STMicroelectronics]
  • 2 Mbit 256Kb x8, Boot Block Single Supply Flash Memory
  • 200998 KB
  • M295V002B-120K6TR Datasheet Download
  • ·M295V002B-120N1TR
  • STMICROELECTRONICS [STMicroelectronics]
  • 2 Mbit 256Kb x8, Boot Block Single Supply Flash Memory
  • 200998 KB
  • M295V002B-120N1TR Datasheet Download
  • ·M295V002B-120N6TR
  • STMICROELECTRONICS [STMicroelectronics]
  • 2 Mbit 256Kb x8, Boot Block Single Supply Flash Memory
  • 200998 KB
  • M295V002B-120N6TR Datasheet Download

Related Part Number

M29F400BT Relative Products

  • M29F400BB70N6T

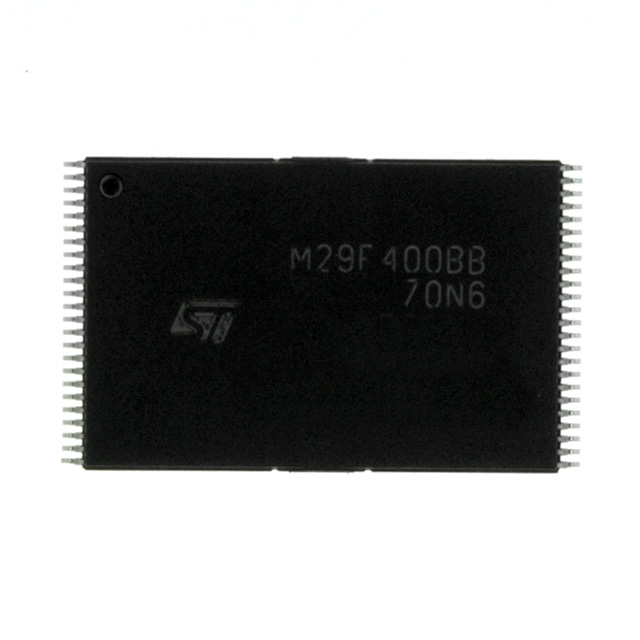

    M29F400BB70N6T
