General Description
M2V56S40ATP General Description
M2V56S20ATP is a 4-bank x 16777216-word x 4-bit, M2V56S30ATP is a 4-bank x 8388608-word x 8-bit, M2V56S40ATP is a 4-bank x 4194304-word x 16-bit, synchronous DRAM, with LVTTL interface. All inputs and outputs are referenced to the rising edge of CLK. The M2V56S20/30/40ATP achieve very high speed data rate up to 100MHz (-7) , 133MHz (-6), 166MHz(-5) and are suitable for main memory or graphic memory in computer systems.
M2V56S40ATP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| Vdd | Supply Voltage |
with respect to Vss |
-0.5 ~ 4.6 |
V |
| VddQ | Supply Voltage for Output |
with respect to VssQ |
-0.5 ~ 4.6 |
V |
| VI | Input Voltage |
with respect to Vss |
-0.5 ~ Vdd+0.5 |
V |
| VO | Output Voltage |
with respect to VssQ |
-0.5~ VddQ+0.5 |
V |
| IO | Output Current |
50 |
mA | |
| Pd | Power Dissipation |
Ta = 25 |
1000 |
mW |
| Topr | Operating Temperature |
0 ~ 70 |
||
| Tstg | Storage Temperature |
-65 ~ 150 |
M2V56S40ATP Features
· Single 3.3v±0.3V power supply
· Max. Clock frequency -5:PC166<3-3-3> / -6:PC133<3-3-3> / -7:PC100<2-2-2>
· Fully Synchronous operation referenced to clock rising edge
· Single Data Rate
· 4 bank operation controlled by BA0, BA1 (Bank Address)
· /CAS latency- 2/3 (programmable)
· Burst length- 1/2/4/8/full page (programmable)
· Burst type- sequential / interleave (programmable)
· Random column access
· Auto precharge / All bank precharge controlled by A10
· 8192 refresh cycles /64ms (4 banks concurrent refresh)
· Auto refresh and Self refresh
· Row address A0-12 / Column address A0-9,11(x4)/ A0-9(x8)/ A0-8(x16)
· LVTTL Interface
· 400-mil, 54-pin Thin Small Outline Package (TSOP II) with 0.8mm lead pitch
· Max. Clock frequency -5:PC166<3-3-3> / -6:PC133<3-3-3> / -7:PC100<2-2-2>
· Fully Synchronous operation referenced to clock rising edge
· Single Data Rate
· 4 bank operation controlled by BA0, BA1 (Bank Address)
· /CAS latency- 2/3 (programmable)
· Burst length- 1/2/4/8/full page (programmable)
· Burst type- sequential / interleave (programmable)
· Random column access
· Auto precharge / All bank precharge controlled by A10
· 8192 refresh cycles /64ms (4 banks concurrent refresh)
· Auto refresh and Self refresh
· Row address A0-12 / Column address A0-9,11(x4)/ A0-9(x8)/ A0-8(x16)
· LVTTL Interface
· 400-mil, 54-pin Thin Small Outline Package (TSOP II) with 0.8mm lead pitch

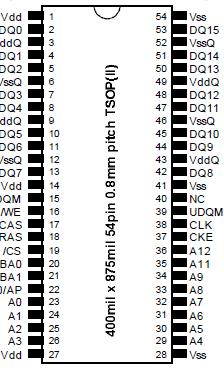

M2V56S40ATP Connection Diagram
M2V56S40ATP
PDF/DataSheet Download
- Datasheet: M2V56S40ATP
- File Size: 634030 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
