General Description
M3-2200-33 General Description
The M3-2200-33 F/2F decoder integrated circuit is designed for use in magnetic strip card reader system.
The F/2F read/decoder IC will recover clock and data signals from an F/2F data stream generated from a magnetic head. M3-2200-33 will function for data rates from 200 to 15,000 bits per second. Acquisition and tracking of the data within this range is automatically.
M3-2200-33 is consisted by two major blocks at each channel:
Amplify block- This block amplifies and filters the signal read from the magnetic reader head, rejects common mode noise and detects signal peaks. It also includes protection circuit to protect the component. And latches onto the data rate and performs the recovery of individual bits from the F/2F data stream.
Control block- The enable and disable counters provide initialization for the recovery block. These counters initialize both bit ecovery and the signal conditioning and detection block.
M3-2200-33 Features
·Dual track F/2F decoder
·Data processing rate: 300 ~ 15,000 bps per track
·Lower power requirement: DC 3.3 ~ 5.0 V
·Acceptable amplitude from 10% to 200% of ISO reference voltage.
·CMOS machining
·Data processing rate: 300 ~ 15,000 bps per track
·Lower power requirement: DC 3.3 ~ 5.0 V
·Acceptable amplitude from 10% to 200% of ISO reference voltage.
·CMOS machining

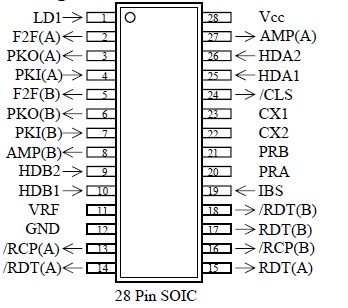

M3-2200-33 Connection Diagram
M3-2200-33
PDF/DataSheet Download
