Part Number: M3-2200-33G
Description: The M3-2200-33G F/2F decoder integrated circuit is designed for use in magnetic str...
- Table of contents:
M3-2200-33G
-
Suppliers
DataSheet
General Description
M3-2200-33G General Description
The M3-2200-33G F/2F decoder integrated circuit is designed for use in magnetic strip card reader system.
The F/2F read/decoder IC will recover clock and data signals from an F/2F data stream generated from a magnetic head. M3-2200-33G will function for data rates from 200 to 15,000 bits per second. Acquisition and tracking of the data within this range is automatically.
M3-2200-33G Features
`Dual track F/2F decoder
`Data processing rate: 300 ~ 15,000 bps per track
`Lower power requirement: DC 3.3 ~ 5.0 V
`Acceptable amplitude from 10% to 200% of ISO reference voltage.
`CMOS machining
`RoHS compliant, halogen-free mold compound, JEDEC Pb-Free category e3 compliant (100%Sn solder plating), and 260 IR reflow test pass
`Data processing rate: 300 ~ 15,000 bps per track
`Lower power requirement: DC 3.3 ~ 5.0 V
`Acceptable amplitude from 10% to 200% of ISO reference voltage.
`CMOS machining
`RoHS compliant, halogen-free mold compound, JEDEC Pb-Free category e3 compliant (100%Sn solder plating), and 260 IR reflow test pass

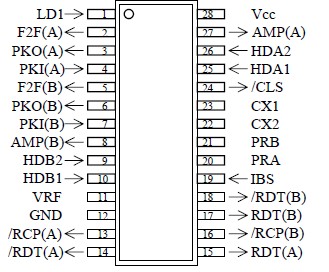

M3-2200-33G Connection Diagram
M3-2200-33G
