Features:

• Basic machine instructions ...............Compatible with the M16C/60 series
• Memory capacity ..............................ROM / RAM (See figure memory expansion)
• Shortest instruction execution time . 100ns (f(XIN)=10MHz)
• Supply voltage ................................ 4.0V to 5.5V (f(XIN)=10MHz)
                                                            2.7V to 5.5V (f(XIN)=3.5MHz)(Note)
• Interrupts ........................................19 internal and 6 external interrupt sources, 4 software
• Multifunction 16-bit timer ................ Timer A X 5, Timer B X 3
• FLD conrtoller ...................................total 56 pins (high-breakdown-voltage P-channel open-drain output : 52pins
• Serial I/O .........................................2 channels for UART or clock synchronous,
                                                            1 channels for clock synchronous (max.256 bytes automatic transfer function)
• DMAC ...............................................2 channels (triggers: 15 sources)
• A-D converter ................................. 10 bits X 8 channels
• D-A converter ................................. 8 bits X 2 channels
• CRC calculation circuit ......................1 circuit
• Watchdog timer .............................. 1 pin
• Programmable I/O .......................... 48 pins
• High-breakdown-voltage output .....52 pins
• Clock generating circuit .................. 2 built-in clock generation circuit
(built-in feedback resistor, and external ceramic or quartz oscillator
Note: Only mask ROM version.


Application

Household appliances, office equipment, Audio etc.


Pinout

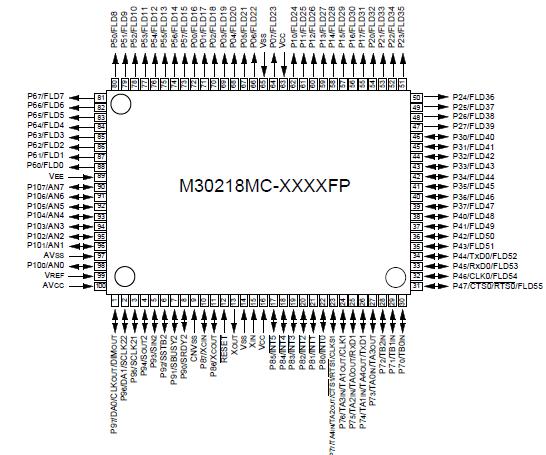

Connection Diagram


Specifications



Symbol
Parameter
Condition
Rated Value
Unit
VCC Supply voltage
-0.3 to 6.5
V
AVcc Analog supply voltage
-0.3 to 6.5
V
VEE Pull-down supply voltage
Vcc - 50 to Vcc+0.3V
V
VI Input voltage RESET, CNVss,
P44 to P47, P70 to P77, P80 to P87,
P90 to P97, P100 to P107, VREF, XIN
- 0.3 to Vcc + 0.3
(Note 1)
V
VI Input voltage P30 to P37, P40 to P43
Vcc - 50 to Vcc+0.3
VO Output voltage P00 to P07, P10 to P17, P20 to P27,
P30 to P37, P40 to P43, P50 to P57,
P60 to P67
Vcc - 50 to Vcc+0.3
VO Output voltage P44 to P47, P70 to P77, P80 to P87,
P90 to P97, P100 to P107,XOUT
- 0.3 to Vcc + 0.3
V
Pd Power
Dissipation
Ta=-20 to 60
750
mW
Ta=-20 to 60
750-12 X (Ta-60)
mW
Topr Operating ambient temperature
- 20 to 85
Tstg Storage Temperature
- 40 to 150

Note 1: When writing to flash ,only CNVss is 0.3 to 13 (V) .




Description

The M30218 group of single-chip microcomputers are built using the high-performance silicon gate CMOS rocess using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. These ingle-chip microcomputers operate using sophisticated instructions featuring a high level of instruction fficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. They lso feature a built-in multiplier and DMAC, making them ideal for controlling musical instruments, household ppliances and other high-speed processing applications.

The M30218 group includes a wide range of products with different internal memory types and sizes and arious package types.
