Part Number: M30220
Description: The M30220 group of single-chip microcomputers are built using the high-performance silicon gate CMOS ...
- Table of contents:
M30220
-
Suppliers
DataSheet
General Description
M30220 General Description
The M30220 group of single-chip microcomputers are built using the high-performance silicon gate CMOS rocess using a M16C/60 Series CPU core. The M30220 group has LCD controller/driver. M30220 group is ackaged in a 144-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated nstructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable f executing instructions at high speed.
M30220 Maximum Ratings
|
Symbol |
Parameter |
Condition |
Rated Value |
Unit | |
| VCC | Supply Voltage |
VCC=AVCC |
-0.3 to 6.5 |
V | |
| AVCC | Supply Voltage for Output |
VCC=AVCC |
-0.3 to 6.5 |
V | |
| VI | Input Voltage | RESET,VREF, XIN P00 to P07, P10 to P17, P20 to P27, P30 to P35, P40 to P47, P50 to P57, P60 to P67, P72 to P77, P80 to P87, P90 to P97, P100 to P107, P110 to P117, P120 to P127, P130 to P132 (Mask ROM version CNVss) |
-0.3 to Vcc+0.3 |
V | |
| VL1 |
0.3 to Vcc+0.3 | ||||
| VL2 |
VL1 to VL3 | ||||
| VL3 |
VL2 to 6.5 | ||||
| P70, P71, C1, C2 (flash memory version CNVss) |
0.3 to 6.5 | ||||
| VO | Output Current | P10 to P17, P20 to P27, P30 to P35, P40 to P47, P50 to P57, P60 to P67, P72 to P76, P80 to P87, P90 to P97, P130 to P132, XOUT |
0.3 to Vcc+0.3 |
V | |
| P00 to P07, P100 to P107, P110 to P117, P120 to P127, |
When output port |
0.3 to Vcc | |||
|
When segment output |
0.3 to VL3 | ||||
| P70, P71 |
-0.3 to 6.5 | ||||
| Pd | Power Dissipation |
Ta=25 |
300 |
mW | |
| Topr | Operating ambient temperature |
-20 to 85 |
|||
| Tstg | Storage Temperature |
-40 to 150 |
|||
M30220 Features
• Basic machine instructions ..................Compatible with the M16C/60 series
• Memory capacity..................................ROM 96 Kbytes
RAM 6 Kbytes
• Shortest instruction execution time ....100ns (f(XIN)=10MHz)
• Supply voltage ....................................4.0V to 5.5V (f(XIN)=10MHz)
2.7V to 5.5V (f(XIN)=7MHz with software one-wait)
• Interrupts ............................................25 internal and 8 external interrupt sources, 4 software, 7 levels
(including key input interrupt)
• Multifunction 16-bit timer ......................imer A (output) x 8, timer B (input) x 6
• Real time port outputs......................... 8 bits X 4 lines
• Serial I/O .............................................3 channel for UART or clock synchronous
• DMAC ...................................................2 channels (trigger: 24 sources)
• A-D converter.......................................10 bits X 8 channels
• D-A converter.......................................8 bits X 3 channels
• Watchdog timer....................................1 line
• Programmable I/O ...............................104 lines (32 lines are shared with LCD outputs)
• Input port ............................................1 line (P77, shared with NMI pin)
• LCD drive control circuit ....................... 1/2, 1/3 bias
2, 3 and 4 time sharing
4 common outputs
48 segment outputs
built-in set-up condencer circuit
• Key input interrupt ................................20 lines
• Clock generating circuit ....................... 2 built-in clock generation circuits
(built-in feedback resistor, and external ceramic or quartz oscillator)
M30220 Typical Application
Camera, Home appliances, Portable equipment, Audio, office equipment, etc.

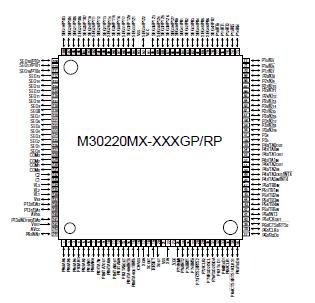

M30220 Connection Diagram
M30220
PDF/DataSheet Download
- Datasheet: M30220
- File Size: 2961058 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
