Part Number: M34501E4FP



MFG: RENESAS

Package Cooled: SOP

D/C: 2004

Description: The 4501 Group is a 4-bit single-chip microcomputer designed with MOS technology. Its CPU is that of t...


Urgent Purchase

M34501E4FP General Description


The 4501 Group is a 4-bit single-chip microcomputer designed with MOS technology. Its CPU is that of the 4500 series using a imple, high-speed instruction set. The computer is equipped with wo 8-bit timers (each timer has a reload register), interrupts, and 0-bit A-D converter.

The various microcomputers in the 4501 Group include variations of the built-in memory size as shown in the table below.

M34501E4FP Maximum Ratings

Item
Symbol
Rating
Unit
Power supply voltage
VDD
-0.3 to 3.8
V
Input supply voltage
VI
-0.3 to VDD + 0.3
V
Operating temperature
TOPR
-20 to 75
Storage temperature
TSTG
-40 to 125

M34501E4FP Features

`Minimum instruction execution time ................................ ..0.68 s
  (at 4.4 MHz oscillation frequency, in high-speed mode)
`Supply voltage .........................................................VRST to 5.5 V
    (VRST: detection voltage of voltage drop detection circuit)
`Timers
   Timer 1 ...................................... 8-bit timer with a reload register
   Timer 2 ...................................... 8-bit timer with a reload register
`Interrupt ........................................................................4 sources
`Key-on wakeup function pins ................................................... 12
`Input/Output port .................................................................... 14
`A-D converter .................... 10-bit successive comparison method
`Watchdog timer
`Clock generating circuit (ceramic resonator/RC oscillation)
`LED drive directly enabled (port D)
`Power-on reset circuit
`Voltage drop detection circuit ..........VRST: Typ. 3.5 V (Ta = 25 )

M34501E4FP Typical Application

Electrical household appliance, consumer electronic products, office utomation equipment, etc.

M34501E4FP Connection Diagram

M34501E4FP Connection Diagram

M34501E4FP datasheet

M34501E4FP
PDF/DataSheet Download

  • Datasheet: M34501E4FP
  • File Size: 1282288 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download

Find M34501E4FP Suppliers

  • ·M34116
  • STMICROELECTRONICS [STMicroelectronics]
  • PCM CONFERENCE CALL AND TONE GENERATION CIRCUIT
  • 383108 KB
  • M34116 Datasheet Download
  • ·M34116B1
  • STMICROELECTRONICS [STMicroelectronics]
  • PCM CONFERENCE CALL AND TONE GENERATION CIRCUIT
  • 383108 KB
  • M34116B1 Datasheet Download
  • ·M34116C1
  • STMICROELECTRONICS [STMicroelectronics]
  • PCM CONFERENCE CALL AND TONE GENERATION CIRCUIT
  • 383108 KB
  • M34116C1 Datasheet Download
  • ·M34225M1
  • MITSUBISHI [Mitsubishi Electric Semiconductor]
  • SINGLE-CHIP 4-BIT CMOS MICRCOMPUTERl
  • 1630519 KB
  • M34225M1 Datasheet Download
  • ·M34225M1-XXXFP
  • MITSUBISHI [Mitsubishi Electric Semiconductor]
  • SINGLE-CHIP 4-BIT CMOS MICRCOMPUTERl
  • 1630519 KB
  • M34225M1-XXXFP Datasheet Download
  • ·M34225M1-XXXSP
  • MITSUBISHI [Mitsubishi Electric Semiconductor]
  • SINGLE-CHIP 4-BIT CMOS MICRCOMPUTERl
  • 1630519 KB
  • M34225M1-XXXSP Datasheet Download
  • ·M34225M2-XXXFP
  • MITSUBISHI [Mitsubishi Electric Semiconductor]
  • SINGLE-CHIP 4-BIT CMOS MICRCOMPUTERl
  • 1630519 KB
  • M34225M2-XXXFP Datasheet Download
  • ·M34225M2-XXXSP
  • MITSUBISHI [Mitsubishi Electric Semiconductor]
  • SINGLE-CHIP 4-BIT CMOS MICRCOMPUTERl
  • 1630519 KB
  • M34225M2-XXXSP Datasheet Download

Related Part Number

M34501E4FP Relative Products

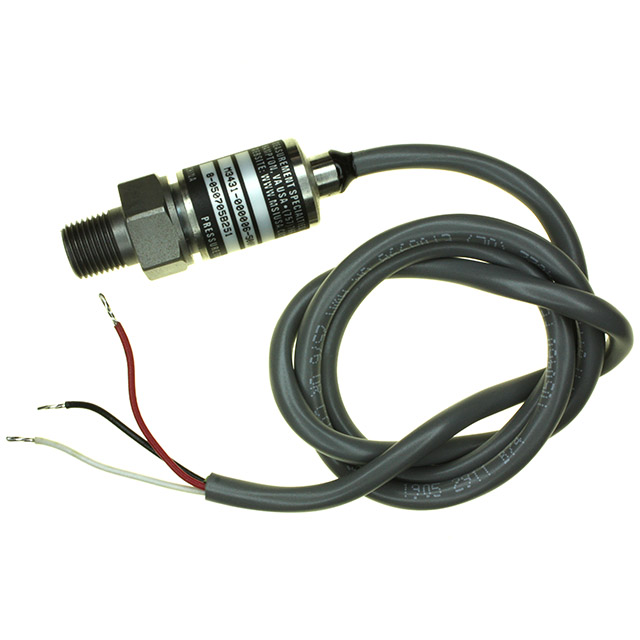

  • M3431-000006-500PG
