Part Number: M34501M4-XXXFP
Description: The 4501 Group is a 4-bit single-chip microcomputer designed with MOS technology. Its CPU is that of t...
- Table of contents:
M34501M4-XXXFP
-
Suppliers
DataSheet
General Description
M34501M4-XXXFP General Description
The 4501 Group is a 4-bit single-chip microcomputer designed with MOS technology. Its CPU is that of the 4500 series using a imple, high-speed instruction set. The computer is equipped with wo 8-bit timers (each timer has a reload register), interrupts, and 0-bit A-D converter.
The various microcomputers in the 4501 Group include variations of the built-in memory size as shown in the table below.
M34501M4-XXXFP Maximum Ratings
| Item |
Symbol |
Rating |
Unit |
| Power supply voltage |
VDD |
-0.3 to 3.8 |
V |
| Input supply voltage |
VI |
-0.3 to VDD + 0.3 |
V |
| Operating temperature |
TOPR |
-20 to 75 |
|
| Storage temperature |
TSTG |
-40 to 125 |
|
M34501M4-XXXFP Features
`Minimum instruction execution time ................................ ..0.68 s
(at 4.4 MHz oscillation frequency, in high-speed mode)
`Supply voltage .........................................................VRST to 5.5 V
(VRST: detection voltage of voltage drop detection circuit)
`Timers
Timer 1 ...................................... 8-bit timer with a reload register
Timer 2 ...................................... 8-bit timer with a reload register
`Interrupt ........................................................................4 sources
`Key-on wakeup function pins ................................................... 12
`Input/Output port .................................................................... 14
`A-D converter .................... 10-bit successive comparison method
`Watchdog timer
`Clock generating circuit (ceramic resonator/RC oscillation)
`LED drive directly enabled (port D)
`Power-on reset circuit
`Voltage drop detection circuit ..........VRST: Typ. 3.5 V (Ta = 25 )
(at 4.4 MHz oscillation frequency, in high-speed mode)
`Supply voltage .........................................................VRST to 5.5 V
(VRST: detection voltage of voltage drop detection circuit)
`Timers
Timer 1 ...................................... 8-bit timer with a reload register
Timer 2 ...................................... 8-bit timer with a reload register
`Interrupt ........................................................................4 sources
`Key-on wakeup function pins ................................................... 12
`Input/Output port .................................................................... 14
`A-D converter .................... 10-bit successive comparison method
`Watchdog timer
`Clock generating circuit (ceramic resonator/RC oscillation)
`LED drive directly enabled (port D)
`Power-on reset circuit
`Voltage drop detection circuit ..........VRST: Typ. 3.5 V (Ta = 25 )
M34501M4-XXXFP Typical Application
Electrical household appliance, consumer electronic products, office utomation equipment, etc.

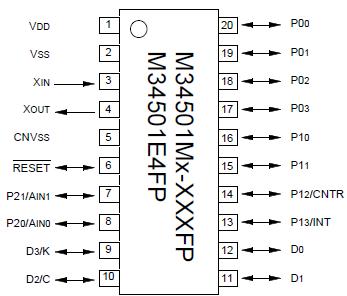

M34501M4-XXXFP Connection Diagram
