M35502AFP
-
Suppliers
DataSheet
General Description
M35502AFP Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| VCC | Power source voltage | • All voltage are based on VSS. |
0.3 to 6.5 |
V |
| VEE | Pull-down power source voltage | • Output transistors are cut off. |
VCC45 to VCC+0.3 |
V |
| VI | Input voltage AN0 AN3 |
0.3 to VCC+0.3 |
V | |
| VI | Input voltage __ CS, SDATA, SCLK |
0.3 to VCC+0.3 |
V | |
| VO | Output voltage FLD0 FLD24 |
VCC45 to VCC+0.3 |
V | |
| • A waveform: 450 s or more frequency and 30 s or less pulse width. • Connect only capacitor load (CL = 200pF). |
VCC50 to VCC+0.3 |
V | ||
| VO | Output voltage SDATA | • All voltage are based on VSS. • Output transistors are cut off. |
0.3 to VCC+0.3 |
|
| Pd | Power dissipation | Ta = 25 |
600 |
mW |
| Topr | Operating temperature |
20 to 85 |
| |
| Tstg | Storage temperature |
40 to 125 |
|
M35502AFP Features
• High-breakdown-voltage output port .....................................25
• Segment output.............................................................. 8 to 20
• Digit output .................................................................... 5 to 16
(Ports P0 to P2 are also used as normal output ports)
• Output breakdown ................................................... Vcc 45 V
• Output current .................................. 18 mA (at DIG selecting)
7 mA (at SEG selecting)
• Pull-down resistor ............................................................built-in
• Serial I/O ....................................3 (CS controller, external clock)
• Noise filter ....................................................................... built-in
(in serial input pin and clock pin, 2 MHz sampling)
• FLD display data ............................................................... input
• A-D conversion data ........................................................ output
• Command .......................................................................... input
• Package ......................................................................... 36P2R-G
• Oscillation circuit ........... CR oscillation cirucit (external capacitor)
• Oscillation frequency.......................................................... 2 MHz
• Power source voltage ............................................... 4.0 to 5.5 V
• Dimmer switch ................................................................. 4 levels
• A-D converter ...................................................8-bit 5 4 channels
• Absolute accuracy ............................................................ ±3 LSB
• Segment output.............................................................. 8 to 20
• Digit output .................................................................... 5 to 16
(Ports P0 to P2 are also used as normal output ports)
• Output breakdown ................................................... Vcc 45 V
• Output current .................................. 18 mA (at DIG selecting)
7 mA (at SEG selecting)
• Pull-down resistor ............................................................built-in
• Serial I/O ....................................3 (CS controller, external clock)
• Noise filter ....................................................................... built-in
(in serial input pin and clock pin, 2 MHz sampling)
• FLD display data ............................................................... input
• A-D conversion data ........................................................ output
• Command .......................................................................... input
• Package ......................................................................... 36P2R-G
• Oscillation circuit ........... CR oscillation cirucit (external capacitor)
• Oscillation frequency.......................................................... 2 MHz
• Power source voltage ............................................... 4.0 to 5.5 V
• Dimmer switch ................................................................. 4 levels
• A-D converter ...................................................8-bit 5 4 channels
• Absolute accuracy ............................................................ ±3 LSB

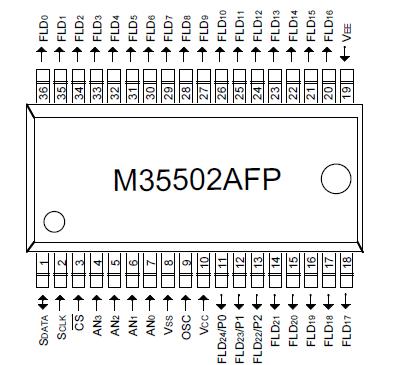

M35502AFP Connection Diagram
M35502AFP
PDF/DataSheet Download
- Datasheet: M35502AFP
- File Size: 223668 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
