Product Details

Description



Features:

• Number of basic instructions .................................................... 71
• Memory size .................................................................................
                          ROM ...................... 32K bytes (M37207M8-XXXSP)
                         62K bytes (M37207MF-XXXSP/FP, M37207EFSP/FP)
                           RAM ...................... 512 bytes (M37207M8-XXXSP)
                          960 bytes (M37207MF-XXXSP/FP,M37207EFSP/FP)
                       ROM correction memory ............................ 64 bytes
                          ROM for display....... 8K bytes (M37207M8-XXXSP)
                         12K bytes (M37207MF-XXXSP/FP,M37207EFSP/FP)
                      RAM for display ........................................ 144 bytes
• Minimum instruction execution time
.   ....................................... 0.5 s (at 8 MHz oscillation frequency)
• Power source voltage ............................................... 5 V ± 10 %
• Subroutine nesting .......................................... 128 levels (Max.)
• Interrupts ................................................... 15 types, 14 vectors
• 8-bit timers .............................................................................. 6
• Programmable I/O ports
   (Ports P0, P1, P2, P30P36, P4, P6) ..................................... 47
• Input ports (Ports P70, P71) .................................................... 2
• Output ports (Ports P52P56) ................................................ 5
• 12 V withstand ports ...............................................................10
• LED drive ports ........................................................................ 4
• Serial I/O ....................................... 8-bit 5 1 channel (2 systems)
• Multi-master I2C-BUS interface ...............................1 (3 systems)
• Power dissipation
   In high-speed mode .......................................................165 mW
   (at VCC = 5.5 V, 8 MHz oscillation frequency, CRT on)
   In low-speed mode ..........................................................33 mW
   (at VCC = 5.5 V, 32 kHz oscillation frequency)
• A-D comparator (6-bit resolution) ...............................8 channels
• PWM output circuit ......................................14-bit 5 1, 8-bit 5 10
• Interrupt interval determination circuit ......................................1
• ROM correction function ..........................................  32 bytes 52
• CRT display function
   Number of display characters ................. 24 characters 5 3 lines
   (16 lines maximum)
   Kinds of characters .......................256 kinds (M37207M8-XXXSP)
   384 kinds (M37207MF-XXXSP/FP,
   M37207EFSP/FP)
   Character display area .......................................... 12 5 16 dots
   Kinds of character sizes ................................................. 4 kinds
   Kinds of character colors (It can be specified by the character)
   maximum 15 kinds (R, G, B, I)
   Kinds of character background colors (It can be specified by the character)
   maximum 7 kinds (R, G, B)
   1/2-character unit color specification is possible.
   Kinds of raster colors (maximum 15 kinds)
   Display position
   Horizontal .................................................................. 64 levels
   Vertical .................................................................... 128 levels
   Bordering (horizontal and vertical)
   Wipe function
   Scanning line double count mode display is possible.


Pinout

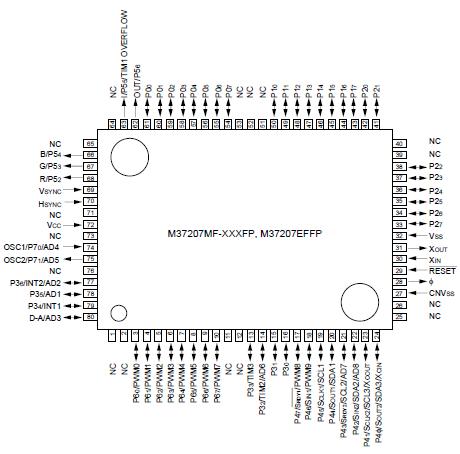

  Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC Power source voltage VCC All voltages are based on
VSS.
Output transistors are
cut off.
0.3 to 6
V
VI Input voltage CNVSS
0.3 to 6

V

VI Input voltage P00P07, P10P17, P20P27,
P30P36, P40P47, P60P67,
P70, P71,OSC1, XIN, HSYNC,VSYNC, RESET, XCIN, AD1AD8
0.3 to VCC+0.3
V
VO Output voltage P00P07, P10P17, P20P27,
P30P36, P40P45, R, G, B, I,
OUT, D-A, XOUT, XCOUT, OSC2
0.3 to VCC+0.3
V
VO Output voltage P46, P47, P60P67 .
0.3 to 13
V
IOLH Circuit current R, G, B, I, OUT, P00P07,
P10P17, P20P27, P30, P31, D-A
0 to 1 (Note 1)
mA
IOL1 Circuit current R, G, B, I, OUT, P00P07,
P10P17, P20P23,P30P36, D-A
0 to 2 (Note 2)
mA
IOL2 Circuit current P46, P47, P60P67
0 to 1 (Note 2)
mA
IOL3 Circuit current P24P27
0 to 10 (Note 3)
mA
IOL4 Circuit current P40P45

0 to 6 (Note 2)

 mW
Pd Power dissipation
550
mW
Topr Operating temperature Ta = 25
-10 to 70
Tstg Storage temperature
40 to 125



Description

The M37207MF-XXXSP/FP and M37207M8-XXXSP are single-chip microcomputers designed with CMOS silicon gate technology. M37207MF-XXXSP/FP and M37207M8-XXXSP are housed in a 64-pin shrink plastic molded DIP or a 80-pin plastic molded QFP.

In addition to their simple instruction sets, the ROM, RAM and I/O addresses are placed on the same memory map to enable easy programming.

The M37207MF-XXXSP/FP has a PWM function and an OSD function, so it is useful for a channel selection system for TV. The features of the M37207EFSP/FP are similar to those of the M37207MFXXXSP/ FP except that these chips have a built-in PROM which can be written electrically. The difference between M37207MF-XXXSP/ FP and M37207M8-XXXSP are the ROM size, RAM size, ROM size for display and kinds of character. Accordingly, the following descriptions will be for the M37207MF-XXXSP/FP unless otherwise noted.
