Part Number: M37207EFSP

MFG: MIT

Package Cooled: DIP

D/C: 1998

Description: The M37207MF-XXXSP/FP and M37207M8-XXXSP are single-chip microcomputers designed with CMOS silicon gat...

M37207EFSP General Description

The M37207MF-XXXSP/FP and M37207M8-XXXSP are single-chip microcomputers designed with CMOS silicon gate technology. It is housed in a 64-pin shrink plastic molded DIP or a 80-pin plastic molded QFP.

In addition to their simple instruction sets, the ROM, RAM and I/O addresses are placed on the same memory map to enable easy programming.

The M37207MF-XXXSP/FP has a PWM function and an OSD function, so it is useful for a channel selection system for TV. The features of the M37207EFSP/FP are similar to those of the M37207MFXXXSP/ FP except that these chips have a built-in PROM which can be written electrically. The difference between M37207MF-XXXSP/ FP and M37207M8-XXXSP are the ROM size, RAM size, ROM size for display and kinds of character. Accordingly, the following descriptions will be for the M37207MF-XXXSP/FP unless otherwise noted.

M37207EFSP Maximum Ratings

Symbol	Parameter		Conditions	Ratings	Unit
V_CC	Power source voltage V_CC		All voltages are based on V_SS. Output transistors are cut off.	0.3 to 6	V
V_I	Input voltage CNV_SS			0.3 to 6	V
V_I	Input voltage	P0₀P0₇, P1₀P1₇, P2₀P2₇, P3₀P3₆, P4₀P4₇, P6₀P6₇, P7₀, P7₁,OSC1, X_IN, H_SYNC,V_SYNC, RESET, X_CIN, AD1AD8		0.3 to V_CC+0.3	V
V_O	Output voltage	P0₀P0₇, P1₀P1₇, P2₀P2₇, P3₀P3₆, P4₀P4₅, R, G, B, I, OUT, D-A, X_OUT, X_COUT, OSC2		0.3 to V_CC+0.3	V
V_O	Output voltage P4₆, P4₇, P6₀P6₇		.	0.3 to 13	V
I_OLH	Circuit current	R, G, B, I, OUT, P0₀P0₇, P1₀P1₇, P2₀P2₇, P3₀, P3₁, D-A		0 to 1 (Note 1)	mA
I_OL1	Circuit current	R, G, B, I, OUT, P0₀P0₇, P1₀P1₇, P2₀P2₃,P3₀P3₆, D-A		0 to 2 (Note 2)	mA
I_OL2	Circuit current P4₆, P4₇, P6₀P6₇			0 to 1 (Note 2)	mA
I_OL3	Circuit current P2₄P2₇			0 to 10 (Note 3)	mA
I_OL4	Circuit current P4₀P4₅			0 to 6 (Note 2)	mW
P_d	Power dissipation			550	mW
T_opr	Operating temperature		Ta = 25	-10 to 70
T_stg	Storage temperature			40 to 125

M37207EFSP Features

• Number of basic instructions .................................................... 71
• Memory size .................................................................................
                          ROM ...................... 32K bytes (M37207M8-XXXSP)
                         62K bytes (M37207MF-XXXSP/FP, M37207EFSP/FP)
                           RAM ...................... 512 bytes (M37207M8-XXXSP)
                        960 bytes (M37207MF-XXXSP/FP,M37207EFSP/FP)
                      ROM correction memory ............................ 64 bytes
                          ROM for display....... 8K bytes (M37207M8-XXXSP)
                         12K bytes (M37207MF-XXXSP/FP,M37207EFSP/FP)
                     RAM for display ........................................ 144 bytes
• Minimum instruction execution time
.   ....................................... 0.5 s (at 8 MHz oscillation frequency)
• Power source voltage ............................................... 5 V ± 10 %
• Subroutine nesting .......................................... 128 levels (Max.)
• Interrupts ................................................... 15 types, 14 vectors
• 8-bit timers .............................................................................. 6
• Programmable I/O ports
   (Ports P0, P1, P2, P30P36, P4, P6) ..................................... 47
• Input ports (Ports P70, P71) .................................................... 2
• Output ports (Ports P52P56) ................................................ 5
• 12 V withstand ports ...............................................................10
• LED drive ports ........................................................................ 4
• Serial I/O ....................................... 8-bit 5 1 channel (2 systems)
• Multi-master I2C-BUS interface ...............................1 (3 systems)
• Power dissipation
   In high-speed mode .......................................................165 mW
   (at VCC = 5.5 V, 8 MHz oscillation frequency, CRT on)
   In low-speed mode ..........................................................33 mW
   (at VCC = 5.5 V, 32 kHz oscillation frequency)
• A-D comparator (6-bit resolution) ...............................8 channels
• PWM output circuit ......................................14-bit 5 1, 8-bit 5 10
• Interrupt interval determination circuit ......................................1
• ROM correction function .......................................... 32 bytes 52
• CRT display function
   Number of display characters ................. 24 characters 5 3 lines
   (16 lines maximum)
   Kinds of characters .......................256 kinds (M37207M8-XXXSP)
   384 kinds (M37207MF-XXXSP/FP,
   M37207EFSP/FP)
   Character display area .......................................... 12 5 16 dots
   Kinds of character sizes ................................................. 4 kinds
   Kinds of character colors (It can be specified by the character)
   maximum 15 kinds (R, G, B, I)
   Kinds of character background colors (It can be specified by the character)
   maximum 7 kinds (R, G, B)
   1/2-character unit color specification is possible.
   Kinds of raster colors (maximum 15 kinds)
   Display position
   Horizontal .................................................................. 64 levels
   Vertical .................................................................... 128 levels
   Bordering (horizontal and vertical)
   Wipe function
   Scanning line double count mode display is possible.

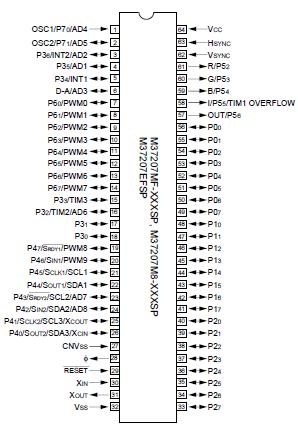

M37207EFSP Connection Diagram

M37207EFSP datasheet

M37207EFSP
PDF/DataSheet Download

Datasheet: M37207EFSP
File Size: 1953506 KB
Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
Click here to Download
