Part Number: M37516M6-A06HP
Description: The M37516M6-XXXHP is the 8-bit microcomputer based on the 740 family core technology.
- Table of contents:
M37516M6-A06HP
-
Suppliers
DataSheet
General Description
M37516M6-A06HP General Description
The M37516M6-XXXHP is the 8-bit microcomputer based on the 740 family core technology.
The M37516M6-XXXHP is designed for the household products and office automation equipment and includes serial I/O functions, 8-bit timer, A-D converter, and I2C-bus interface.
M37516M6-A06HP Features
.Basic machine-language instructions ...................................... 71
.Minimum instruction execution time ................................... 0.5us
(at 8 MHz oscillation frequency)
.Memory size
ROM ............................................................................. 24 Kbytes
RAM.............................................................................. 640 bytes
.Programmable input/output ports ............................................ 40
.Interrupts ................................................. 17 sources, 16 vectors
.Timers ............................................................................. 8-bit 5 4
.Serial I/O1 .................... 8-bit 5 1(UART or Clock-synchronized)
.Serial I/O2 ................................... 8-bit 5 1(Clock-synchronized)
.Multi-master I2C-bus interface (option) ....................... 1 channel
.PWM ............................................................................... 8-bit 5 1
.A-D converter ............................................... 10-bit 5 8 channels
.Watchdog timer ............................................................ 16-bit 5 1
.Clock generating circuit ..................................... Built-in 2 circuits
(connect to external ceramic resonator or quartz-crystal oscillator)
.Power source voltage
In high-speed mode .................................................. 4.0 to 5.5 V
(at 8 MHz oscillation frequency)
In high-speed mode .................................................. 2.7 to 5.5 V
(at 4 MHz oscillation frequency)
In middle-speed mode ............................................... 2.7 to 5.5 V
(at 8 MHz oscillation frequency)
In low-speed mode .................................................... 2.7 to 5.5 V
(at 32 kHz oscillation frequency)
.Power dissipation
In high-speed mode ..........................................................34 mW
(at 8 MHz oscillation frequency, at 5 V power source voltage)
In low-speed mode ..............................................................60uW
(at 32 kHz oscillation frequency, at 3 V power source voltage)
.Operating temperature range.................................... 20 to 85 C
M37516M6-A06HP Typical Application
Office automation equipment, FA equipment, Household products,Consumer electronics, etc.

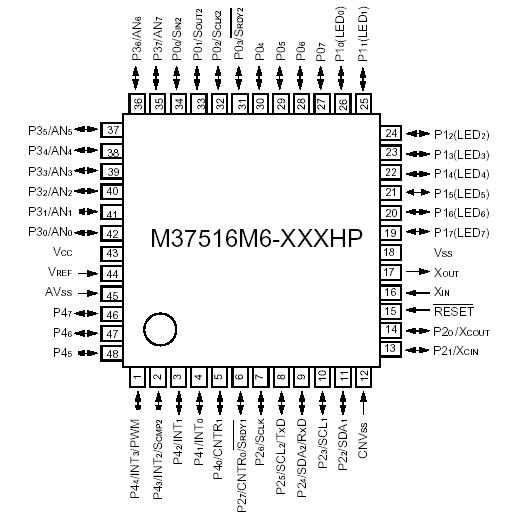

M37516M6-A06HP Connection Diagram
M37516M6-A06HP
PDF/DataSheet Download
- Datasheet: M37516M6-A06HP
- File Size: 367028 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
